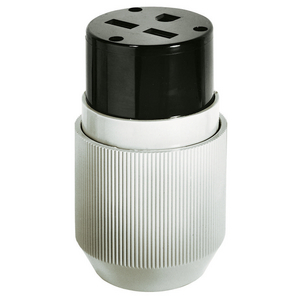

Straight Blade Devices, Female Connector Body, Heavy Duty, Industrial/Commercial Grade, Straight, 30A 250V, 2-Pole 3- Wire Grounding, 6-30R

By Bryant

Catalog ID: 9630NC

By Bryant
Catalog ID:  9630NC
Straight Blade Devices, Female Connector Body, Heavy Duty, Industrial/Commercial Grade, Straight, 30A 250V, 2-Pole 3- Wire Grounding, 6-30R, Gray, Single Pack

Standard Product

Contact Us
Add to List

More Options

Where to Buy

Product Details

General

Application Heavy Duty
Color Gray
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Insulation Insulated Body
Item Type Standard
Material Composite
Material - Mounting Hardware Cord Mounted
Number Of Poles 2-Pole
OEM Brand Name Hubbell Bryant
Series Industrial
Style Extra Heavy Duty
Temperature Rating Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type Connector Body
UPC 781786732223

Dimensions

Display Size Standard Sized Product
Length 5.19 in
Weight 1.15 lb
Width 2.59 in

Electrical Ratings

Amperage Rating 30 A
Connectivity Pressure Terminal Screws
Current / Amperage Rating 30 A
Current Rating 30 A
Voltage Rating 250 V
Voltage Rating Description 250 V

Conductor Related

Conductor Range #12 AWG to #8 AWG
Number Of Conductors 3-Wire Grounding
Number Of Wires 3-Wire

Certifications and Compliance

Nema Rating 6-30R

Logistics

Carton Quantity 10
