15-Ton Remote C-Head Crimper, 10000 psi, Uses S Dies

By Burndy

Catalog ID: Y45

By Burndy
Catalog ID:  Y45
15T Remote C-Head Crimper, 10000 psi, Uses S Dies.

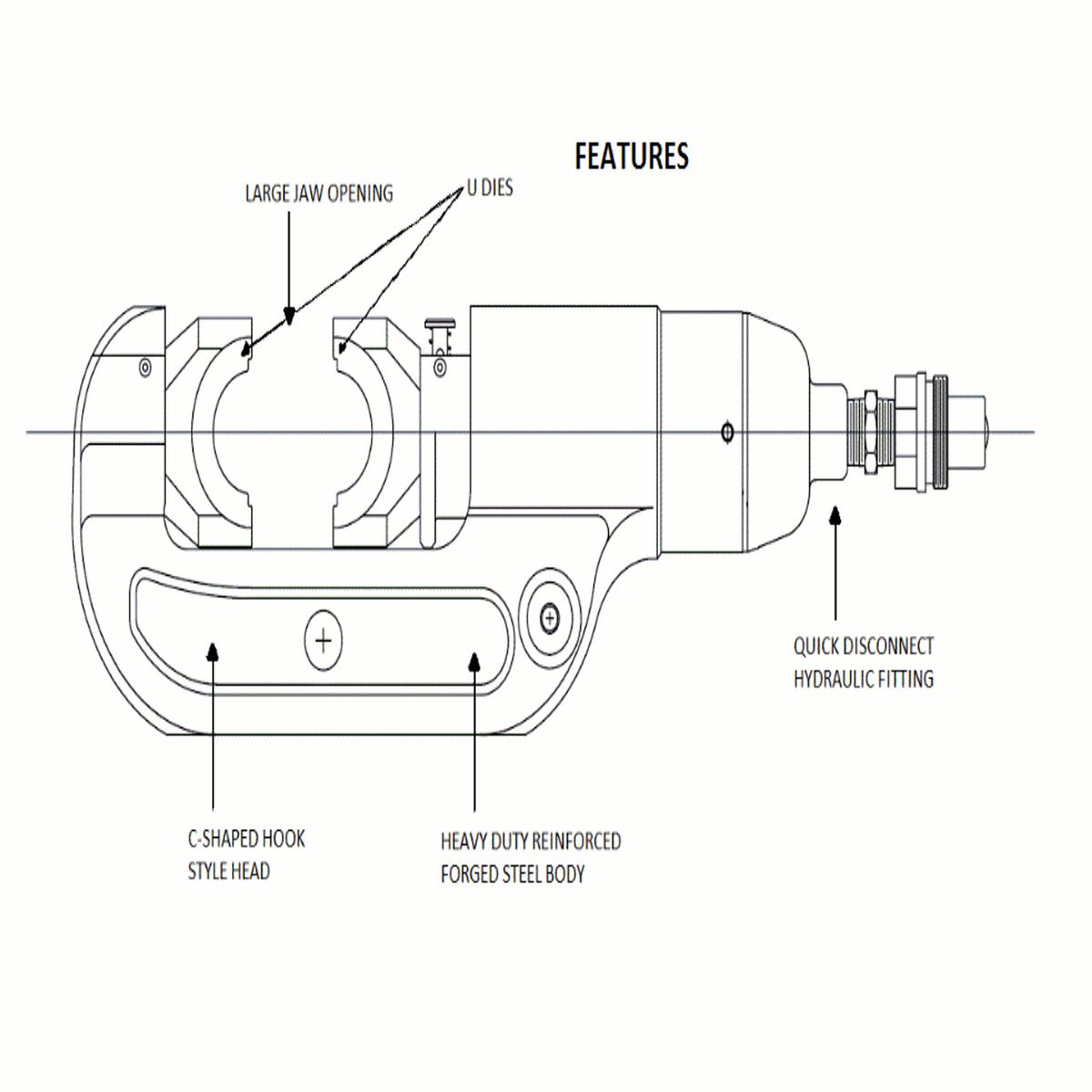

  • Large jaw opening
  • Quick disconnect hydraulic fitting
  • C-Shaped hook style head
  • Heavy duty reinforced forged steel body

Easy connector installation and tool removal from line conductors with the open C-shaped head, Easily lifted into working position using lifting eye, Easy die changing plus secure die alignment is provided with the positive die lock buttons

5 year limited warranty

Add to List

More Options

Where to Buy

Product Details

General

Application Crimping
Application - For Use On Copper, Aluminum, ACSR, HYGROUND® Compression Grounding, Ground Rod
Crimp Force Capacity 15 ton
Die Type S Die and U Die with PT6515 Adapter
EU RoHS Indicator Yes
Sub Brand HYPRESS
Tool Type Remote Hydraulic Crimper
Trade Name HYPRESS™
UPC 781810625156
UPC 12 Digit 7818106251566

Dimensions

Height 4.5 in
Length 15.25 in
Weight 15.5 lb

Conductor Related

Crimping Ranges Tension Sleeves: Copper #8 sol. - 500 kcmil, Aluminum #6 sol. - 954 kcmil, ACSR #4 - 795 (26/7) kcmil; Taps: Aluminum #14 - 954 (18/1) kcmil, ACSR #6 - 795 (54/7) kcmil; Aerial Cable Connectors: Copper #6 str. - 1500 kcmil, Aluminum #4 str. - 1000 kcmil; HYGROUND® Compression Grounding: Copper #6 - 500 kcmil, 1/2” - 1” ground rods; Code Cable Terminals/Splices: Copper #8 - 1500 kcmil, Aluminum #8 - 1000 kcmil; Code Cable Taps: Copper #14 - 1000 kcmil, Aluminum #14 - 900 kcmil

Certifications and Compliance

Standards - RoHS Compliance Status EX

Logistics

Minimum Pack Quantity 1
Package Contents Tool, Nylon Carry Bag

Resources and Downloads

Customer Notices

Sales Drawings
