PHP400 Help Point (SMART analogue), white, 1 button (requires 230 VAC mains power)

By GAI-Tronics

Catalog ID: 228-02-6241-90W

By GAI-Tronics
Catalog ID:  228-02-6241-90W

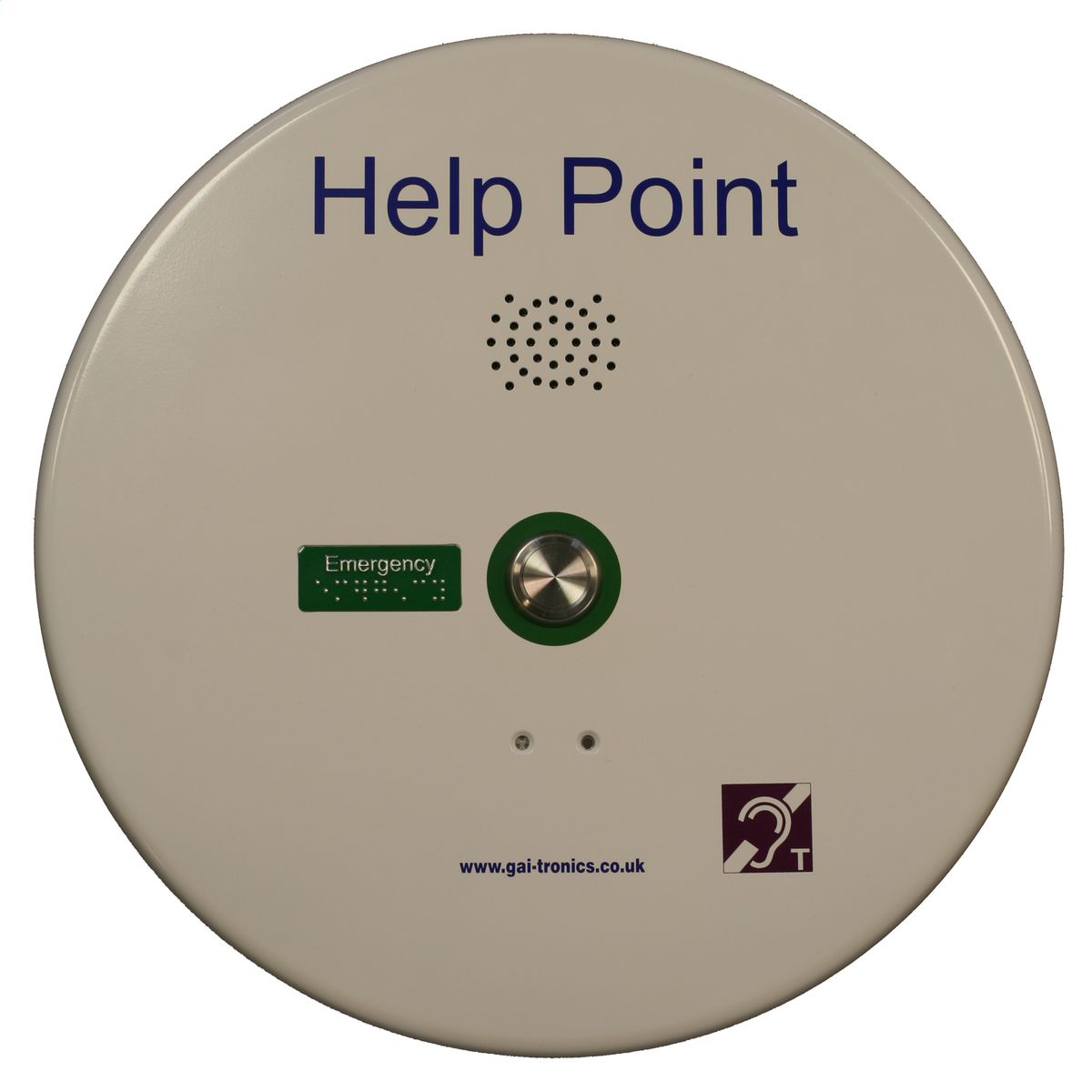

The PHP400 Help Point is a rugged, public access handsfree telephone housed in a white enclosure. The Help Point telephones are vandal and weather resistant, providing hands-free loudspeaking communications for any public area. The design of the unit takes into consideration the requirements of The Equality Act 2010 (EA).The unit provides basic telephone functions and can be connected to any standard two-wire telephone line, including FXS ports, analogue PABX lines and PSTN. Self Monitoring And Reporting Telephone can be integrated with GAI-TRONICS’ TMA monitoring and maintenance software. SMART gives advanced features including remote programming, fault monitoring and call logging.
  • Large, vandal resistant metal buttons, palm operable
  • Raised text button legends with Braille
  • Integral Induction Loop facility for hearing impaired
  • Audio-visual ring indication
  • Emergency override
  • Hands-free Operation
  • Local PA
  • Robust and weather resistant - IP55
  • 1 button auto-dial option with remote programming
  • Suitable for pole mounting to a single PSTN post or surface mounting, simple installation
  • 400 mm diameter
  • NETWORK RAIL Approved
Add to List

More Options

Product Details


Application Public Areas
CE Compliant Yes
Color White
Connectivity Options SMART Analogue
Mount location Pole mounting (PSTN) or Surface mounting
Operating Temperature -20 °C to +60 °C
Power Requires 230 VAC mains power
Storage Temperature Range -40° C to +70° C
Type 1 Button
Weather Resistant Yes

Certifications and Compliance

CE Compliant Yes
Compliance IP55

Resources and Downloads


Product Name Description
Mounting Post (1.42 metre) for use with PHP400 Help Points
Mounting Post (1.42 metre) for use with PHP400 Help Point telephones; galvanised
