OVERVIEW

The Intent linear flood family joins Kim Lighting’s extensive flood offering. This compact architectural flood provides optimal appearance and performance for exterior wall washing, grazing or sign lighting applications in static white, RGBW and RGBA configurations.

Seamless Variety

The wide array of distributions offered allow for completely different effects to be shown, even in the same application. Narrow distribution provides a subtle accent to highlight the architectural details surrounding the windows, while the wide flood bathes the facade dramatically in bands of light drawing your eyes upward.

Uniformity

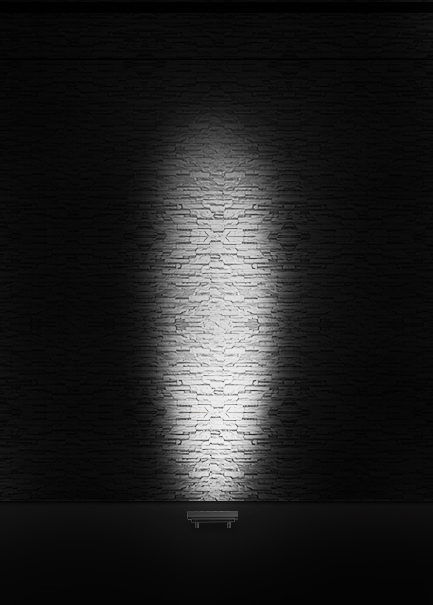

Wall wash distribution creates a uniform lit appearance even with a minimal 12” setback. The optic creates an asymmetric pattern that allows for light to skim the surface without the luminaire being tilted. This allows for an even distribution of light across the surface.

Connectivity

This innovative design allows for linear fixture runs without ever having to open the product and expose it to the elements. This is achieved by connecting an IP68 rated cord between two sealed driver compartments. An architectural cover is also offered to shield the cord and continue the seamless appearance of the luminaire.

The Intent Is...

SEAMLESS VARIETY

NARROW THROW

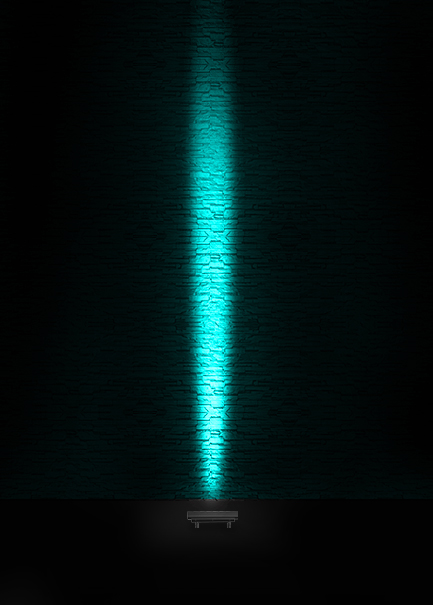

Narrow Spot distribution has up to a 143,906 center beam candlepower out of a 7° distribution, which makes it ideal for throwing colorful pillars of light up skyscrapers or bridges.

CONNECTIVITY

DRAMATIC TEXTURE

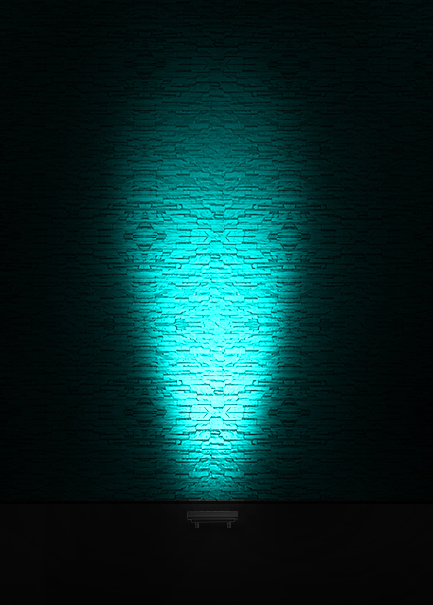

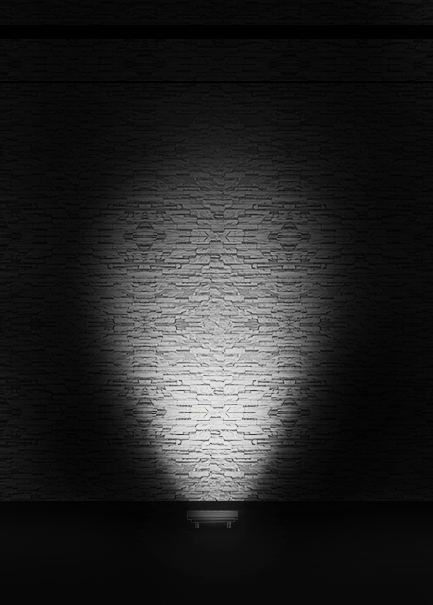

Wall Graze distribution enhances textures and provides more drama to a space. The wide 33° horizontal angle provides a beautiful blending of colors from fixture to fixture, while the narrow 8° vertical angle creates shadows on the illuminated surface.

DISTRIBUTIONS

White and RGBW distributions in variety of distribution patterns

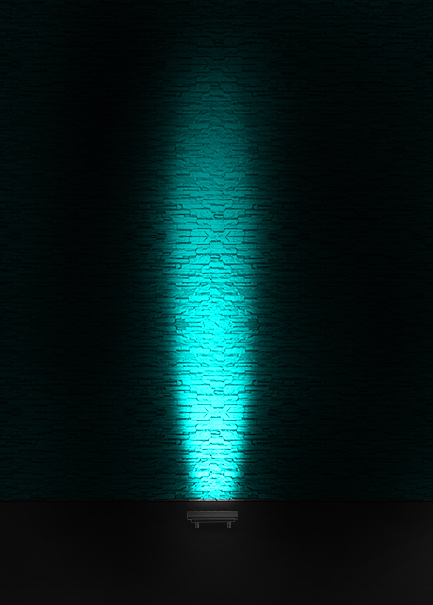

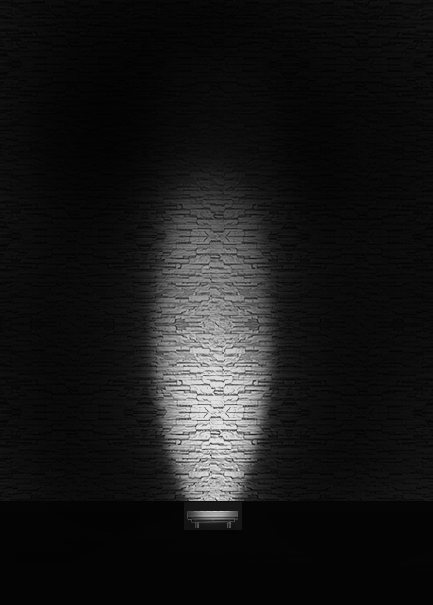

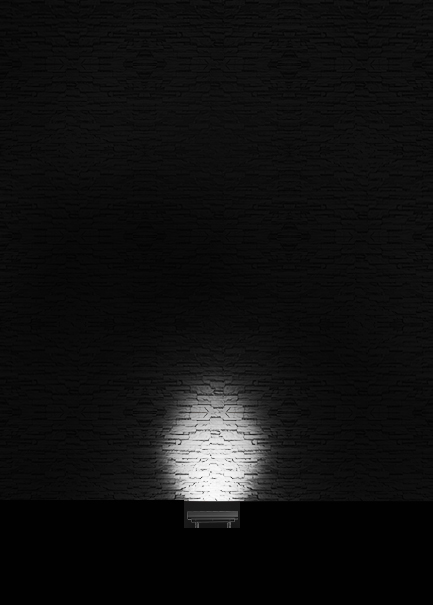

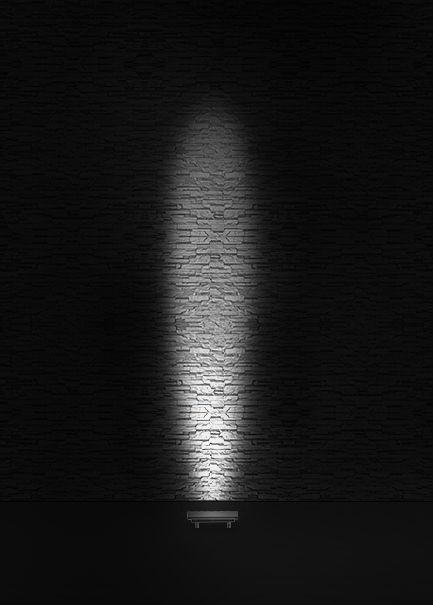

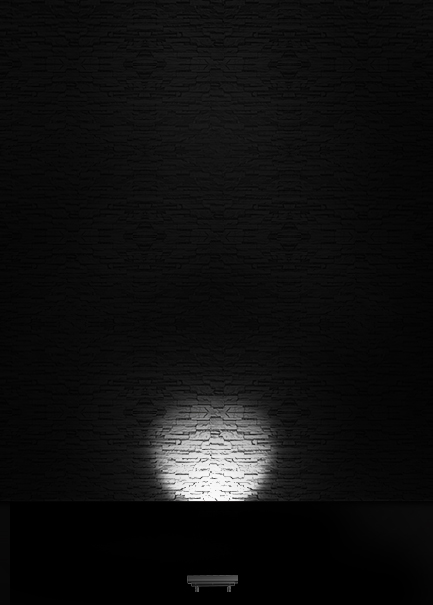

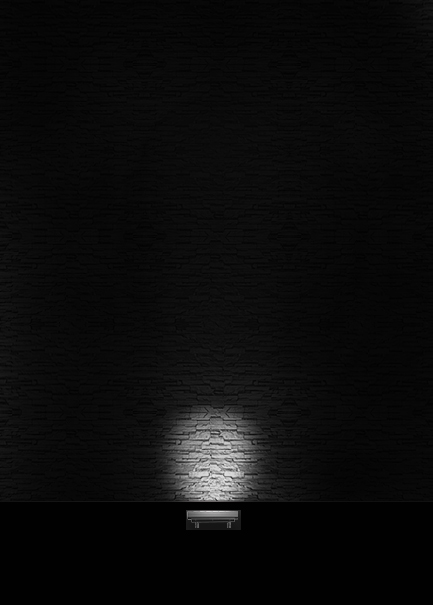

White: Narrow, Narrow Medium, Medium Flood, Wide Flood, Wall Wash, Wall Graze, Horizontal Flood

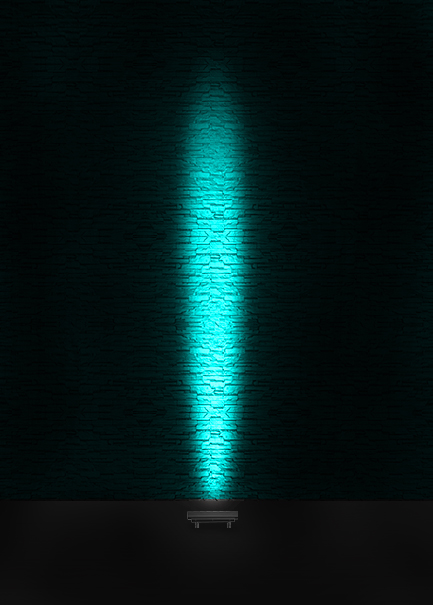

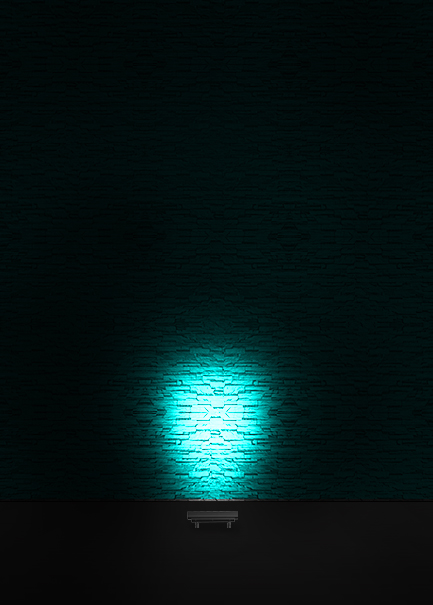

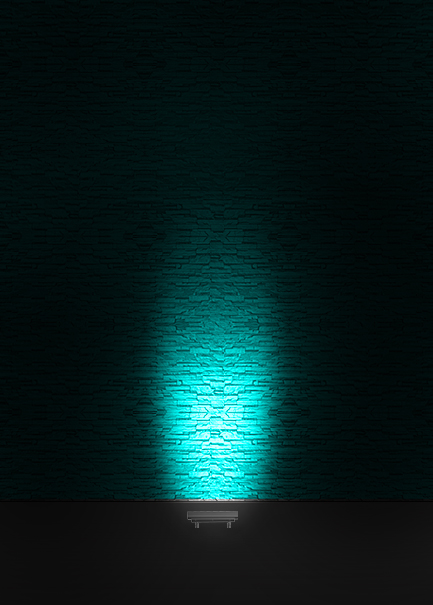

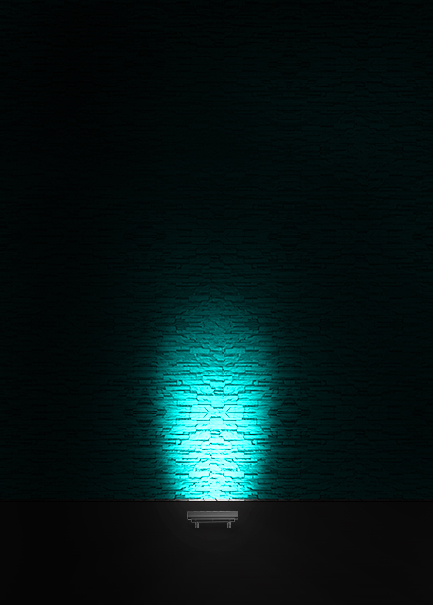

RGBW: Narrow Spot, Spot Narrow, Narrow Medium, Medium, Medium Flood, Wall Graze

CONTROL

Color: Set the mood with the KFL collection by dimming and color control via Bluetooth® wireless or DMX hardwired connectivity. The Bluetooth app provides a cost-effective way to set color, add presets, dim the luminaires, or even pull specific colors from a photograph. A wired DMX protocol can also be used to create stunning light shows that seamlessly change color.

White: Luminaires enabled with NX Distributed Intelligence™ wireless radios create an intelligent mesh network with the interior controls. Groups are dimmed via an astronomical time clock and schedules can be updated at any time with the Bluetooth® commissioning app.

ENGINEERING EXCELLENCE

Internal Features

Thermal fold-back dims the fixture in the chance it sees too high of temperatures. This feature protects the components from over-heating which would decrease the life of the luminaire.

Standard 10kA 20kV surge suppression provides an enhanced level of protection against power spikes and surges for ultimate peace of mind and long-term luminaire operation.

Engineering Excellence banner

CONNECTION OPTIONS

Cable Ready

Wiring can be mounted through a cable on the side of the driver compartment. If this option is chosen, fixture will automatically come with connectors on both sides of the fixture.

Left Mounting and Cable Ready

Both above wiring configurations can be combined to create to configuration shown here.

Connection Banner

MOUNTING OPTIONS

Mounting Options Banner

General

Color

BLS - Black Gloss Smooth
BLT - Black Matte Textured
DBS - Dark Bronze Gloss Smooth
DBT- Dark Bronze Matte Textured
GTT - Graphite Matte Textured
LG - Light Grey Matte Textured
LGS - Light Grey Gloss Smooth
PSS - Platinum Silver Gloss Smooth
VGT - Verde Green Matte Textured
WHS - White Gloss Smooth
WHT - White Matte Textured
CC – Custom Color

Download All

Product Name	Color Temp	CRI	Lumens	Lm/W	Watts	Dist. Type	Resources
INT-2-12L-15-RGBA-M	590 nm		670 lm	42	15.98 W	Medium	IES file
INT-2-12L-15-RGBA-MF	590 nm		719 lm	44	16.4 W	Medium Flood	IES file
INT-2-12L-15-RGBA-N	590 nm		725 lm	44	16.4 W	Narrow	IES file
INT-2-12L-15-RGBA-NM	590 nm		657 lm	40	16.4 W	Narrow Medium	IES file
INT-2-12L-15-RGBA-NS	590 nm		741 lm	45	16.4 W	Narrow Spot	IES file
INT-2-12L-15-RGBA-SP	590 nm		757 lm	46	16.4 W	Spot	IES file
INT-2-12L-15-RGBA-WG	590 nm		730 lm	45	16.4 W	Wall Graze	IES file
INT-2-12L-15-RGBW-M	6500 K	70 CRI	1209 lm	73	16.48 W	Medium	IES file
INT-2-12L-15-RGBW-MF	6500 K	70 CRI	1298 lm	79	16.51 W	Medium Flood	IES file
INT-2-12L-15-RGBW-N	6500 K	70 CRI	1308 lm	79	16.49 W	Narrow	IES file
INT-2-12L-15-RGBW-NM	6500 K	70 CRI	1185 lm	72	16.47 W	Narrow Medium	IES file
INT-2-12L-15-RGBW-NS	6500 K	70 CRI	1338 lm	81	16.48 W	Narrow Spot	IES file
INT-2-12L-15-RGBW-SP	6500 K	70 CRI	1366 lm	83	16.47 W	Spot	IES file
INT-2-12L-15-RGBW-WG	6500 K	70 CRI	1318 lm	79	16.67 W	Wall Graze	IES file
INT-2-24L-30-3K7-HF	3000 K	70 CRI	3061 lm	107	28.6 W	Horizontal Flood	IES file
INT-2-24L-30-3K7-MF	3000 K	70 CRI	3226 lm	113	28.6 W	Medium Flood	IES file
INT-2-24L-30-3K7-N	3000 K	70 CRI	3319 lm	116	28.6 W	Narrow	IES file
INT-2-24L-30-3K7-NM	3000 K	70 CRI	3332 lm	117	28.6 W	Narrow Medium	IES file
INT-2-24L-30-3K7-WF	3000 K	70 CRI	3392 lm	119	28.6 W	Wide Flood	IES file
INT-2-24L-30-3K7-WF-DL	3000 K	70 CRI	2803 lm	98	28.6 W	Wide Flood	IES file
INT-2-24L-30-3K7-WG	3000 K	70 CRI	3385 lm	118	28.6 W	Wall Graze	IES file
INT-2-24L-30-3K7-WW	3000 K	70 CRI	3136 lm	110	28.6 W	Wall Wash	IES file
INT-2-24L-30-4K7-HF	4000 K	70 CRI	3218 lm	113	28.6 W	Horizontal Flood	IES file
INT-2-24L-30-4K7-MF	4000 K	70 CRI	3391 lm	119	28.6 W	Medium Flood	IES file
INT-2-24L-30-4K7-N	4000 K	70 CRI	3490 lm	122	28.6 W	Narrow	IES file
INT-2-24L-30-4K7-NM	4000 K	70 CRI	3504 lm	123	28.6 W	Narrow Medium	IES file
INT-2-24L-30-4K7-WF	4000 K	70 CRI	3566 lm	125	28.6 W	Wide Flood	IES file
INT-2-24L-30-4K7-WF-DL	4000 K	70 CRI	2947 lm	103	28.6 W	Wide Flood	IES file
INT-2-24L-30-4K7-WG	4000 K	70 CRI	3559 lm	124	28.6 W	Wall Graze	IES file
INT-2-24L-30-4K7-WW	4000 K	70 CRI	3297 lm	115	28.6 W	Wall Wash	IES file
INT-2-24L-30-5K7-HF	5000 K	70 CRI	3285 lm	115	28.6 W	Horizontal Flood	IES file
INT-2-24L-30-5K7-MF	5000 K	70 CRI	3462 lm	121	28.6 W	Medium Flood	IES file
INT-2-24L-30-5K7-N	5000 K	70 CRI	3563 lm	125	28.6 W	Narrow	IES file
INT-2-24L-30-5K7-NM	5000 K	70 CRI	3577 lm	125	28.6 W	Narrow Medium	IES file
INT-2-24L-30-5K7-WF	5000 K	70 CRI	3640 lm	127	28.6 W	Wide Flood	IES file
INT-2-24L-30-5K7-WF-DL	5000 K	70 CRI	3009 lm	105	28.6 W	Wide Flood	IES file
INT-2-24L-30-5K7-WG	5000 K	70 CRI	3632 lm	127	28.6 W	Wall Graze	IES file
INT-2-24L-30-5K7-WW	5000 K	70 CRI	3365 lm	118	28.6 W	Wall Wash	IES file
INT-2-24L-35-3K7-HF	3000 K	70 CRI	4249 lm	106	39.9 W	Horizontal Flood	IES file
INT-2-24L-35-3K7-MF	3000 K	70 CRI	4478 lm	112	39.9 W	Medium Flood	IES file
INT-2-24L-35-3K7-N	3000 K	70 CRI	4608 lm	115	39.9 W	Narrow	IES file
INT-2-24L-35-3K7-NM	3000 K	70 CRI	4626 lm	116	39.9 W	Narrow Medium	IES file
INT-2-24L-35-3K7-WF	3000 K	70 CRI	4708 lm	118	39.9 W	Wide Flood	IES file
INT-2-24L-35-3K7-WF-DL	3000 K	70 CRI	3891 lm	98	39.9 W	Wide Flood	IES file
INT-2-24L-35-3K7-WG	3000 K	70 CRI	4698 lm	118	39.9 W	Wall Graze	IES file
INT-2-24L-35-3K7-WW	3000 K	70 CRI	4353 lm	109	39.9 W	Wall Wash	IES file
INT-2-24L-35-4K7-HF	4000 K	70 CRI	4467 lm	112	39.9 W	Horizontal Flood	IES file
INT-2-24L-35-4K7-MF	4000 K	70 CRI	4708 lm	118	39.9 W	Medium Flood	IES file
INT-2-24L-35-4K7-N	4000 K	70 CRI	4845 lm	121	39.9 W	Narrow	IES file
INT-2-24L-35-4K7-NM	4000 K	70 CRI	4864 lm	122	39.9 W	Narrow Medium	IES file
INT-2-24L-35-4K7-WF	4000 K	70 CRI	4950 lm	124	39.9 W	Wide Flood	IES file
INT-2-24L-35-4K7-WF-DL	4000 K	70 CRI	4091 lm	103	39.9 W	Wide Flood	IES file
INT-2-24L-35-4K7-WG	4000 K	70 CRI	4940 lm	124	39.9 W	Wall Graze	IES file
INT-2-24L-35-4K7-WW	4000 K	70 CRI	4577 lm	115	39.9 W	Wall Wash	IES file
INT-2-24L-35-5K7-HF	5000 K	70 CRI	4560 lm	114	39.9 W	Horizontal Flood	IES file
INT-2-24L-35-5K7-MF	5000 K	70 CRI	4805 lm	120	39.9 W	Medium Flood	IES file
INT-2-24L-35-5K7-N	5000 K	70 CRI	4945 lm	124	39.9 W	Narrow	IES file
INT-2-24L-35-5K7-NM	5000 K	70 CRI	4965 lm	124	39.9 W	Narrow Medium	IES file
INT-2-24L-35-5K7-WF	5000 K	70 CRI	5053 lm	127	39.9 W	Wide Flood	IES file
INT-2-24L-35-5K7-WF-DL	5000 K	70 CRI	4176 lm	105	39.9 W	Wide Flood	IES file
INT-2-24L-35-5K7-WG	5000 K	70 CRI	5042 lm	126	39.9 W	Wall Graze	IES file
INT-2-24L-35-5K7-WW	5000 K	70 CRI	4672 lm	117	39.9 W	Wall Wash	IES file
INT-2-24L-60-3K7-HF	3000 K	70 CRI	6267 lm	101	62.3 W	Horizontal Flood	IES file
INT-2-24L-60-3K7-MF	3000 K	70 CRI	6604 lm	106	62.3 W	Medium Flood	IES file
INT-2-24L-60-3K7-N	3000 K	70 CRI	6797 lm	109	62.3 W	Narrow	IES file
INT-2-24L-60-3K7-NM	3000 K	70 CRI	6823 lm	110	62.3 W	Narrow Medium	IES file
INT-2-24L-60-3K7-WF	3000 K	70 CRI	6945 lm	111	62.3 W	Wide Flood	IES file
INT-2-24L-60-3K7-WF-DL	3000 K	70 CRI	5740 lm	92	62.3 W	Wide Flood	IES file
INT-2-24L-60-3K7-WG	3000 K	70 CRI	6930 lm	111	62.3 W	Wall Graze	IES file
INT-2-24L-60-3K7-WW	3000 K	70 CRI	6421 lm	103	62.3 W	Wall Wash	IES file
INT-2-24L-60-4K7-HF	4000 K	70 CRI	6589 lm	106	62.3 W	Horizontal Flood	IES file
INT-2-24L-60-4K7-MF	4000 K	70 CRI	6944 lm	111	62.3 W	Medium Flood	IES file
INT-2-24L-60-4K7-N	4000 K	70 CRI	7146 lm	115	62.3 W	Narrow	IES file
INT-2-24L-60-4K7-NM	4000 K	70 CRI	7174 lm	115	62.3 W	Narrow Medium	IES file
INT-2-24L-60-4K7-WF	4000 K	70 CRI	7302 lm	117	62.3 W	Wide Flood	IES file
INT-2-24L-60-4K7-WF-DL	4000 K	70 CRI	6035 lm	97	62.3 W	Wide Flood	IES file
INT-2-24L-60-4K7-WG	4000 K	70 CRI	7286 lm	117	62.3 W	Wall Graze	IES file
INT-2-24L-60-4K7-WW	4000 K	70 CRI	6750 lm	108	62.3 W	Wall Wash	IES file
INT-2-24L-60-5K7-HF	5000 K	70 CRI	6726 lm	108	62.3 W	Horizontal Flood	IES file
INT-2-24L-60-5K7-MF	5000 K	70 CRI	7088 lm	114	62.3 W	Medium Flood	IES file
INT-2-24L-60-5K7-N	5000 K	70 CRI	7294 lm	117	62.3 W	Narrow	IES file
INT-2-24L-60-5K7-NM	5000 K	70 CRI	7323 lm	118	62.3 W	Narrow Medium	IES file
INT-2-24L-60-5K7-WF	5000 K	70 CRI	7453 lm	120	62.3 W	Wide Flood	IES file
INT-2-24L-60-5K7-WF-DL	5000 K	70 CRI	6160 lm	99	62.3 W	Wide Flood	IES file
INT-2-24L-60-5K7-WG	5000 K	70 CRI	7437 lm	119	62.3 W	Wall Graze	IES file
INT-2-24L-60-5K7-WW	5000 K	70 CRI	6891 lm	111	62.3 W	Wall Wash	IES file
INT-3-18L-35-RGBA-M	590 nm		1603 lm	42	38.51 W	Medium	IES file
INT-3-18L-35-RGBA-MF	590 nm		1721 lm	45	38.5 W	Medium Flood	IES file
INT-3-18L-35-RGBA-N	590 nm		1733 lm	45	38.5 W	Narrow	IES file
INT-3-18L-35-RGBA-NM	590 nm		1570 lm	41	38.5 W	Narrow Medium	IES file
INT-3-18L-35-RGBA-NS	590 nm		1778 lm	46	38.5 W	Narrow Spot	IES file
INT-3-18L-35-RGBA-SP	590 nm		1813 lm	47	38.5 W	Spot	IES file
INT-3-18L-35-RGBA-WG	590 nm		1773 lm	46	38.5 W	Wall Graze	IES file
INT-3-18L-35-RGBW-M	6500 K	70 CRI	2891 lm	75	38.51 W	Medium	IES file
INT-3-18L-35-RGBW-MF	6500 K	70 CRI	3107 lm	81	38.5 W	Medium Flood	IES file
INT-3-18L-35-RGBW-N	6500 K	70 CRI	3129 lm	81	38.5 W	Narrow	IES file
INT-3-18L-35-RGBW-NM	6500 K	70 CRI	2834 lm	74	38.5 W	Narrow Medium	IES file
INT-3-18L-35-RGBW-NS	6500 K	70 CRI	3209 lm	83	38.5 W	Narrow Spot	IES file
INT-3-18L-35-RGBW-SP	6500 K	70 CRI	3271 lm	85	38.5 W	Spot	IES file
INT-3-18L-35-RGBW-WG	6500 K	70 CRI	3199 lm	83	38.5 W	Wall Graze	IES file
INT-3-36L-40-3K7-HF	3000 K	70 CRI	4646 lm	111	42.02 W	Horizontal Flood	IES file
INT-3-36L-40-3K7-MF	3000 K	70 CRI	4896 lm	117	42.02 W	Medium Flood	IES file
INT-3-36L-40-3K7-N	3000 K	70 CRI	5038 lm	120	42.02 W	Narrow	IES file
INT-3-36L-40-3K7-NM	3000 K	70 CRI	5058 lm	120	42.02 W	Narrow Medium	IES file
INT-3-36L-40-3K7-WF	3000 K	70 CRI	5148 lm	123	42.02 W	Wide Flood	IES file
INT-3-36L-40-3K7-WF-DL	3000 K	70 CRI	4255 lm	101	42.02 W	Wide Flood	IES file
INT-3-36L-40-3K7-WG	3000 K	70 CRI	5137 lm	122	42.02 W	Wall Graze	IES file
INT-3-36L-40-3K7-WW	3000 K	70 CRI	4760 lm	113	42.02 W	Wall Wash	IES file
INT-3-36L-40-4K7-HF	4000 K	70 CRI	4884 lm	116	42.02 W	Horizontal Flood	IES file
INT-3-36L-40-4K7-MF	4000 K	70 CRI	5147 lm	122	42.02 W	Medium Flood	IES file
INT-3-36L-40-4K7-N	4000 K	70 CRI	5297 lm	126	42.02 W	Narrow	IES file
INT-3-36L-40-4K7-NM	4000 K	70 CRI	5318 lm	127	42.02 W	Narrow Medium	IES file
INT-3-36L-40-4K7-WF	4000 K	70 CRI	5413 lm	129	42.02 W	Wide Flood	IES file
INT-3-36L-40-4K7-WF-DL	4000 K	70 CRI	4473 lm	106	42.02 W	Wide Flood	IES file
INT-3-36L-40-4K7-WG	4000 K	70 CRI	5401 lm	129	42.02 W	Wall Graze	IES file
INT-3-36L-40-4K7-WW	4000 K	70 CRI	5004 lm	119	42.02 W	Wall Wash	IES file
INT-3-36L-40-5K7-HF	5000 K	70 CRI	4986 lm	119	42.02 W	Horizontal Flood	IES file
INT-3-36L-40-5K7-MF	5000 K	70 CRI	5254 lm	125	42.02 W	Medium Flood	IES file
INT-3-36L-40-5K7-N	5000 K	70 CRI	5407 lm	129	42.02 W	Narrow	IES file
INT-3-36L-40-5K7-NM	5000 K	70 CRI	5429 lm	129	42.02 W	Narrow Medium	IES file
INT-3-36L-40-5K7-WF	5000 K	70 CRI	5525 lm	131	42.02 W	Wide Flood	IES file
INT-3-36L-40-5K7-WF-DL	5000 K	70 CRI	4566 lm	109	42.02 W	Wide Flood	IES file
INT-3-36L-40-5K7-WG	5000 K	70 CRI	5513 lm	131	42.02 W	Wall Graze	IES file
INT-3-36L-40-5K7-WW	5000 K	70 CRI	5108 lm	122	42.02 W	Wall Wash	IES file
INT-3-36L-60-3K7-HF	3000 K	70 CRI	6373 lm	107	59.5 W	Horizontal Flood	IES file
INT-3-36L-60-3K7-MF	3000 K	70 CRI	6716 lm	113	59.5 W	Medium Flood	IES file
INT-3-36L-60-3K7-N	3000 K	70 CRI	6912 lm	116	59.5 W	Narrow	IES file
INT-3-36L-60-3K7-NM	3000 K	70 CRI	6939 lm	117	59.5 W	Narrow Medium	IES file
INT-3-36L-60-3K7-WF	3000 K	70 CRI	7062 lm	119	59.5 W	Wide Flood	IES file
INT-3-36L-60-3K7-WF-DL	3000 K	70 CRI	5837 lm	98	59.5 W	Wide Flood	IES file
INT-3-36L-60-3K7-WG	3000 K	70 CRI	7047 lm	75	93.74 W	Wall Graze	IES file
INT-3-36L-60-3K7-WW	3000 K	70 CRI	6529 lm	110	59.5 W	Wall Wash	IES file
INT-3-36L-60-4K7-HF	4000 K	70 CRI	6701 lm	113	59.5 W	Horizontal Flood	IES file
INT-3-36L-60-4K7-MF	4000 K	70 CRI	7061 lm	119	59.5 W	Medium Flood	IES file
INT-3-36L-60-4K7-N	4000 K	70 CRI	7267 lm	122	59.5 W	Narrow	IES file
INT-3-36L-60-4K7-NM	4000 K	70 CRI	7295 lm	123	59.5 W	Narrow Medium	IES file
INT-3-36L-60-4K7-WF	4000 K	70 CRI	7425 lm	125	59.5 W	Wide Flood	IES file
INT-3-36L-60-4K7-WF-DL	4000 K	70 CRI	6137 lm	103	59.5 W	Wide Flood	IES file
INT-3-36L-60-4K7-WG	4000 K	70 CRI	7409 lm	125	59.5 W	Wall Graze	IES file
INT-3-36L-60-4K7-WW	4000 K	70 CRI	6865 lm	115	59.5 W	Wall Wash	IES file
INT-3-36L-60-5K7-HF	5000 K	70 CRI	6840 lm	115	59.5 W	Horizontal Flood	IES file
INT-3-36L-60-5K7-MF	5000 K	70 CRI	7208 lm	121	59.5 W	Medium Flood	IES file
INT-3-36L-60-5K7-N	5000 K	70 CRI	7418 lm	125	59.5 W	Narrow	IES file
INT-3-36L-60-5K7-NM	5000 K	70 CRI	7447 lm	125	59.5 W	Narrow Medium	IES file
INT-3-36L-60-5K7-WF	5000 K	70 CRI	7580 lm	127	59.5 W	Wide Flood	IES file
INT-3-36L-60-5K7-WF-DL	5000 K	70 CRI	6264 lm	105	59.5 W	Wide Flood	IES file
INT-3-36L-60-5K7-WG	5000 K	70 CRI	7564 lm	127	59.5 W	Wall Graze	IES file
INT-3-36L-60-5K7-WW	5000 K	70 CRI	7008 lm	118	59.5 W	Wall Wash	IES file
INT-3-36L-95-3K7-HF	3000 K	70 CRI	9659 lm	103	93.63 W	Horizontal Flood	IES file
INT-3-36L-95-3K7-MF	3000 K	70 CRI	10179 lm	109	93.77 W	Medium Flood	IES file
INT-3-36L-95-3K7-N	3000 K	70 CRI	10475 lm	112	93.79 W	Narrow	IES file
INT-3-36L-95-3K7-NM	3000 K	70 CRI	10516 lm	112	93.92 W	Narrow Medium	IES file
INT-3-36L-95-3K7-WF	3000 K	70 CRI	10703 lm	114	93.68 W	Wide Flood	IES file
INT-3-36L-95-3K7-WF-DL	3000 K	70 CRI	8846 lm	94	93.7 W	Wide Flood	IES file
INT-3-36L-95-3K7-WG	3000 K	70 CRI	10680 lm	114	93.74 W	Wall Graze	IES file
INT-3-36L-95-3K7-WW	3000 K	70 CRI	9895 lm	106	93.51 W	Wall Wash	IES file
INT-3-36L-95-4K7-HF	4000 K	70 CRI	10155 lm	108	93.63 W	Horizontal Flood	IES file
INT-3-36L-95-4K7-MF	4000 K	70 CRI	10701 lm	114	93.77 W	Medium Flood	IES file
INT-3-36L-95-4K7-N	4000 K	70 CRI	11013 lm	117	93.79 W	Narrow	IES file
INT-3-36L-95-4K7-NM	4000 K	70 CRI	11056 lm	118	93.92 W	Narrow Medium	IES file
INT-3-36L-95-4K7-WF	4000 K	70 CRI	11253 lm	120	93.68 W	Wide Flood	IES file
INT-3-36L-95-4K7-WF-DL	4000 K	70 CRI	9300 lm	99	93.7 W	Wide Flood	IES file
INT-3-36L-95-4K7-WG	4000 K	70 CRI	11229 lm	120	93.74 W	Wall Graze	IES file
INT-3-36L-95-4K7-WW	4000 K	70 CRI	10405 lm	111	93.51 W	Wall Wash	IES file
INT-3-36L-95-5K7-HF	5000 K	70 CRI	10366 lm	111	93.63 W	Horizontal Flood	IES file
INT-3-36L-95-5K7-MF	5000 K	70 CRI	10924 lm	116	93.77 W	Medium Flood	IES file
INT-3-36L-95-5K7-N	5000 K	70 CRI	11242 lm	120	93.79 W	Narrow	IES file
INT-3-36L-95-5K7-NM	5000 K	70 CRI	11286 lm	120	93.92 W	Narrow Medium	IES file
INT-3-36L-95-5K7-WF	5000 K	70 CRI	11487 lm	123	93.68 W	Wide Flood	IES file
INT-3-36L-95-5K7-WF-DL	5000 K	70 CRI	9494 lm	101	93.7 W	Wide Flood	IES file
INT-3-36L-95-5K7-WG	5000 K	70 CRI	11463 lm	122	93.74 W	Wall Graze	IES file
INT-3-36L-95-5K7-WW	5000 K	70 CRI	10621 lm	114	93.51 W	Wall Wash	IES file
INT-4-24L-40-RGBA-M	590 nm		1579 lm	39	40.8 W	Medium	IES file
INT-4-24L-40-RGBA-MF	590 nm		1696 lm	42	40.8 W	Medium Flood	IES file
INT-4-24L-40-RGBA-N	590 nm		1708 lm	42	40.8 W	Narrow	IES file
INT-4-24L-40-RGBA-NM	590 nm		1547 lm	38	40.8 W	Narrow Medium	IES file
INT-4-24L-40-RGBA-NS	590 nm		1752 lm	43	40.8 W	Narrow Spot	IES file
INT-4-24L-40-RGBA-SP	590 nm		1786 lm	44	40.8 W	Spot	IES file
INT-4-24L-40-RGBA-WG	590 nm		1747 lm	43	40.8 W	Wall Graze	IES file
INT-4-24L-40-RGBW-M	6500 K	70 CRI	2848 lm	70	40.84 W	Medium	IES file
INT-4-24L-40-RGBW-MF	6500 K	70 CRI	3061 lm	75	40.8 W	Medium Flood	IES file
INT-4-24L-40-RGBW-N	6500 K	70 CRI	3082 lm	76	40.8 W	Narrow	IES file
INT-4-24L-40-RGBW-NM	6500 K	70 CRI	2791 lm	68	40.8 W	Narrow Medium	IES file
INT-4-24L-40-RGBW-NS	6500 K	70 CRI	3162 lm	77	40.8 W	Narrow Spot	IES file
INT-4-24L-40-RGBW-SP	6500 K	70 CRI	3223 lm	79	40.8 W	Spot	IES file
INT-4-24L-40-RGBW-WG	6500 K	70 CRI	3152 lm	77	40.8 W	Wall Graze	IES file
INT-4-48L-125-3K7-HF	3000 K	70 CRI	12565 lm	102	123.25 W	Horizontal Flood	IES file
INT-4-48L-125-3K7-MF	3000 K	70 CRI	13241 lm	107	123.35 W	Medium Flood	IES file
INT-4-48L-125-3K7-N	3000 K	70 CRI	13627 lm	110	123.35 W	Narrow	IES file
INT-4-48L-125-3K7-NM	3000 K	70 CRI	13680 lm	111	123.35 W	Narrow Medium	IES file
INT-4-48L-125-3K7-WF	3000 K	70 CRI	14127 lm	114	123.72 W	Wide Flood	IES file
INT-4-48L-125-3K7-WF-DL	3000 K	70 CRI	11676 lm	95	123.09 W	Wide Flood	IES file
INT-4-48L-125-3K7-WG	3000 K	70 CRI	13894 lm	113	123.35 W	Wall Graze	IES file
INT-4-48L-125-3K7-WW	3000 K	70 CRI	12873 lm	104	123.35 W	Wall Wash	IES file
INT-4-48L-125-4K7-HF	4000 K	70 CRI	13210 lm	107	123.25 W	Horizontal Flood	IES file
INT-4-48L-125-4K7-MF	4000 K	70 CRI	13921 lm	113	123.35 W	Medium Flood	IES file
INT-4-48L-125-4K7-N	4000 K	70 CRI	14327 lm	116	123.35 W	Narrow	IES file
INT-4-48L-125-4K7-NM	4000 K	70 CRI	14383 lm	117	123.35 W	Narrow Medium	IES file
INT-4-48L-125-4K7-WF	4000 K	70 CRI	14853 lm	120	123.72 W	Wide Flood	IES file
INT-4-48L-125-4K7-WF-DL	4000 K	70 CRI	12276 lm	100	123.09 W	Wide Flood	IES file
INT-4-48L-125-4K7-WG	4000 K	70 CRI	14608 lm	118	123.35 W	Wall Graze	IES file
INT-4-48L-125-4K7-WW	4000 K	70 CRI	13535 lm	110	123.35 W	Wall Wash	IES file
INT-4-48L-125-5K7-HF	5000 K	70 CRI	13485 lm	109	123.25 W	Horizontal Flood	IES file
INT-4-48L-125-5K7-MF	5000 K	70 CRI	14211 lm	115	123.35 W	Medium Flood	IES file
INT-4-48L-125-5K7-N	5000 K	70 CRI	14625 lm	119	123.35 W	Narrow	IES file
INT-4-48L-125-5K7-NM	5000 K	70 CRI	14682 lm	119	123.35 W	Narrow Medium	IES file
INT-4-48L-125-5K7-WF	5000 K	70 CRI	15162 lm	123	123.72 W	Wide Flood	IES file
INT-4-48L-125-5K7-WF-DL	5000 K	70 CRI	12531 lm	102	123.09 W	Wide Flood	IES file
INT-4-48L-125-5K7-WG	5000 K	70 CRI	14912 lm	121	123.35 W	Wall Graze	IES file
INT-4-48L-125-5K7-WW	5000 K	70 CRI	13816 lm	112	123.35 W	Wall Wash	IES file
INT-4-48L-55-3K7-HF	3000 K	70 CRI	6124 lm	113	53.96 W	Horizontal Flood	IES file
INT-4-48L-55-3K7-MF	3000 K	70 CRI	6454 lm	120	53.96 W	Medium Flood	IES file
INT-4-48L-55-3K7-N	3000 K	70 CRI	6642 lm	123	53.96 W	Narrow	IES file
INT-4-48L-55-3K7-NM	3000 K	70 CRI	6668 lm	124	53.96 W	Narrow Medium	IES file
INT-4-48L-55-3K7-WF	3000 K	70 CRI	6787 lm	126	53.96 W	Wide Flood	IES file
INT-4-48L-55-3K7-WF-DL	3000 K	70 CRI	5609 lm	104	53.96 W	Wide Flood	IES file
INT-4-48L-55-3K7-WG	3000 K	70 CRI	6772 lm	126	53.96 W	Wall Graze	IES file
INT-4-48L-55-3K7-WW	3000 K	70 CRI	6275 lm	116	53.96 W	Wall Wash	IES file
INT-4-48L-55-4K7-HF	4000 K	70 CRI	6439 lm	119	53.96 W	Horizontal Flood	IES file
INT-4-48L-55-4K7-MF	4000 K	70 CRI	6786 lm	126	53.96 W	Medium Flood	IES file
INT-4-48L-55-4K7-N	4000 K	70 CRI	6983 lm	129	53.96 W	Narrow	IES file
INT-4-48L-55-4K7-NM	4000 K	70 CRI	7011 lm	75	93.92 W	Narrow Medium	IES file
INT-4-48L-55-4K7-WF	4000 K	70 CRI	7135 lm	132	53.96 W	Wide Flood	IES file
INT-4-48L-55-4K7-WF-DL	4000 K	70 CRI	5897 lm	109	53.96 W	Wide Flood	IES file
INT-4-48L-55-4K7-WG	4000 K	70 CRI	7120 lm	132	53.96 W	Wall Graze	IES file
INT-4-48L-55-4K7-WW	4000 K	70 CRI	6597 lm	122	53.96 W	Wall Wash	IES file
INT-4-48L-55-5K7-HF	5000 K	70 CRI	6573 lm	122	53.96 W	Horizontal Flood	IES file
INT-4-48L-55-5K7-MF	5000 K	70 CRI	6927 lm	128	53.96 W	Medium Flood	IES file
INT-4-48L-55-5K7-N	5000 K	70 CRI	7128 lm	132	53.96 W	Narrow	IES file
INT-4-48L-55-5K7-NM	5000 K	70 CRI	7156 lm	133	53.96 W	Narrow Medium	IES file
INT-4-48L-55-5K7-WF	5000 K	70 CRI	7284 lm	135	53.96 W	Wide Flood	IES file
INT-4-48L-55-5K7-WF-DL	5000 K	70 CRI	6020 lm	112	53.96 W	Wide Flood	IES file
INT-4-48L-55-5K7-WG	5000 K	70 CRI	7268 lm	135	53.96 W	Wall Graze	IES file
INT-4-48L-55-5K7-WW	5000 K	70 CRI	6734 lm	125	53.96 W	Wall Wash	IES file
INT-4-48L-80-3K7-HF	3000 K	70 CRI	8499 lm	108	78.6 W	Horizontal Flood	IES file
INT-4-48L-80-3K7-MF	3000 K	70 CRI	8956 lm	114	78.6 W	Medium Flood	IES file
INT-4-48L-80-3K7-N	3000 K	70 CRI	9217 lm	117	78.6 W	Narrow	IES file
INT-4-48L-80-3K7-NM	3000 K	70 CRI	9253 lm	118	78.6 W	Narrow Medium	IES file
INT-4-48L-80-3K7-WF	3000 K	70 CRI	9418 lm	120	78.6 W	Wide Flood	IES file
INT-4-48L-80-3K7-WF-DL	3000 K	70 CRI	7783 lm	99	78.6 W	Wide Flood	IES file
INT-4-48L-80-3K7-WG	3000 K	70 CRI	9398 lm	120	78.6 W	Wall Graze	IES file
INT-4-48L-80-3K7-WW	3000 K	70 CRI	8707 lm	111	78.6 W	Wall Wash	IES file
INT-4-48L-80-4K7-HF	4000 K	70 CRI	8935 lm	114	78.6 W	Horizontal Flood	IES file
INT-4-48L-80-4K7-MF	4000 K	70 CRI	9416 lm	120	78.6 W	Medium Flood	IES file
INT-4-48L-80-4K7-N	4000 K	70 CRI	9690 lm	123	78.6 W	Narrow	IES file
INT-4-48L-80-4K7-NM	4000 K	70 CRI	9728 lm	124	78.6 W	Narrow Medium	IES file
INT-4-48L-80-4K7-WF	4000 K	70 CRI	9901 lm	126	78.6 W	Wide Flood	IES file
INT-4-48L-80-4K7-WF-DL	4000 K	70 CRI	8183 lm	104	78.6 W	Wide Flood	IES file
INT-4-48L-80-4K7-WG	4000 K	70 CRI	9880 lm	126	78.6 W	Wall Graze	IES file
INT-4-48L-80-4K7-WW	4000 K	70 CRI	9154 lm	116	78.6 W	Wall Wash	IES file
INT-4-48L-80-5K7-HF	5000 K	70 CRI	9121 lm	116	78.6 W	Horizontal Flood	IES file
INT-4-48L-80-5K7-MF	5000 K	70 CRI	9612 lm	122	78.6 W	Medium Flood	IES file
INT-4-48L-80-5K7-N	5000 K	70 CRI	9892 lm	126	78.6 W	Narrow	IES file
INT-4-48L-80-5K7-NM	5000 K	70 CRI	9931 lm	126	78.6 W	Narrow Medium	IES file
INT-4-48L-80-5K7-WF	5000 K	70 CRI	10107 lm	129	78.6 W	Wide Flood	IES file
INT-4-48L-80-5K7-WF-DL	5000 K	70 CRI	8353 lm	106	78.6 W	Wide Flood	IES file
INT-4-48L-80-5K7-WG	5000 K	70 CRI	10086 lm	128	78.6 W	Wall Graze	IES file
INT-4-48L-80-5K7-WW	5000 K	70 CRI	9344 lm	119	78.6 W	Wall Wash	IES file

Live Introduction Broadcast

OVERVIEW

Seamless Variety

Uniformity

Connectivity

The Intent Is...

SEAMLESS VARIETY

NARROW THROW

CONNECTIVITY

DRAMATIC TEXTURE

DISTRIBUTIONS

CONTROL

ENGINEERING EXCELLENCE

Internal Features

CONNECTION OPTIONS

Cable Ready

Left Mounting and Cable Ready

MOUNTING OPTIONS

Product Details

General

Resources and Downloads

Specifications

Brochures

Installation/Instruction Manual (IOM)

BIM

Color Charts

Photometry (258)

Resources

Our Company

Customer Service
