Dome Closure 570 OPGW Standard Tray Holder

By Hubbell Power Systems

Catalog ID: PSCO5702xxxyyyS

By Hubbell Power Systems
Catalog ID:  PSCO5702xxxyyyS
DOME CLOSURE 570 OPGW STANDARD TRAY HOLDER (Replace xxx with OD of OPGW and yyy with OD of central tube (if SS tubes, “000”))

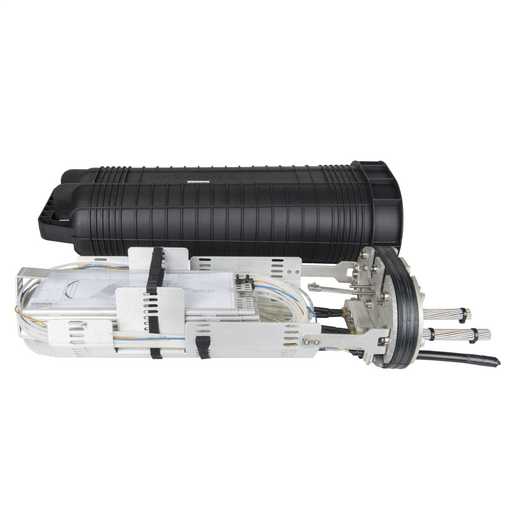

Splice closure is factory equipped to support 2 backbone OPGW and 2 lateral black jacket cables in a mid-size dome.

  • Splice capacity: 192 single fusion / 576 mass fusion
  • OPGW ports accept up to .687" OD
  • ADSS or buried backbone cable ports accept up to .875" OD
  • ADSS or buried lateral cable ports accept up to .750" OD

Product Details

General

Cable Diameter for Backbone Ports - Maximum 0.687"
Cable Diameter for Laterial Ports - Maximum 0.750"
Number Of Ports 6
Number of OPGW Cables - Maximum 4
Number of Trays - Maximum 8
Single Fusion Splice Capacity - Maximum 192
