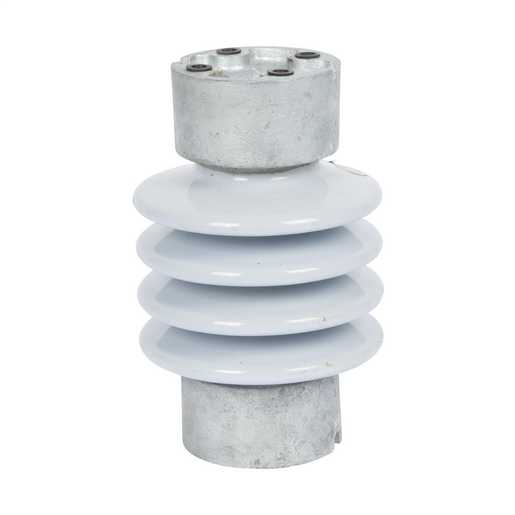

Porcelain Station Post Insulator

By OHIO BRASS

Catalog ID: PSP2053001

By OHIO BRASS
Catalog ID:  PSP2053001
Porcelain Station Post meeting TR 205.
  • Meets or exceeds ANSI C29.9 standards for mechanical and electrical ratings
  • Solid-core construction with gray porcelain glaze as standard
  • Long lasting durability with galvanized end caps and proven interface system
Contact Us

More Options

Get a Quote

Product Details

General

Application Station Post
Cantilever Bending Strength - Routine 2000 lb
Fitting - Ground/Base 3" BOLT CIRCLE
Fitting - Live Line End 3" BOLT CIRCLE
Material Porcelain
Material - End Fitting Galvanized Steel
Number of Sheds 4
Tensile Strength Standard Strength
Tension Range 8500 lb
Torsional Strength 7000 in-lbs. (791 N-m)
UPC 096359612858

Dimensions

Diameter - Shed(s) 6.22" (158 mm)
Height 10 in
Weight 15.4 lb

Electrical Ratings

BIL 110 kV
Creep and Leakage Distance 15.5" (394 mm)
Critical Impulse Flashover (CIFO) - Negative 200 kV
Critical Impulse Flashover (CIFO) - Positive 125 kV
Flashover Voltage - 60 Hz Dry 85 kV
Flashover Voltage - 60 Hz Wet 55 kV
Voltage Application 15 kV
Withstand Voltage - 60 Hz Wet 45 kV

Certifications and Compliance

Industry Standard(s) ANSI C29.9

Logistics

Pallet Quantity 75
Standard Package 3
