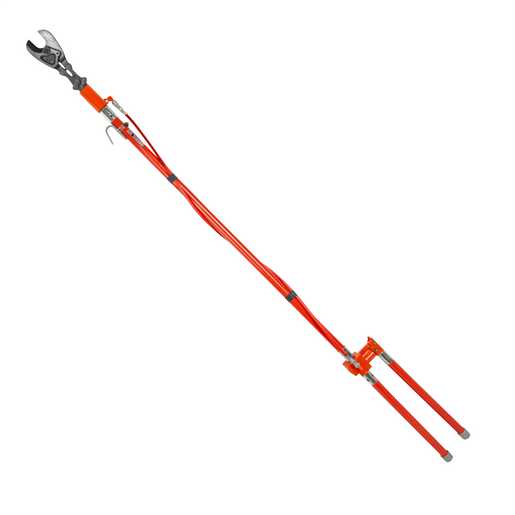

Insulated Hydraulically Operated Conductor Cutter For Up To 954 MCM ACSR, 6'

By CHANCE Utility

Catalog ID: C4030731

By CHANCE Utility
Catalog ID:  C4030731
For cutting conductors up to 954 MCM ACSR, All-Aluminum and 500 MCM copper.
  • Operates like an hydraulic jack- a knob-handle is turned to enable the lineman to operate the pump handle
  • Knob is turned in the opposite direction to allow the cutting head to open
  • Epoxiglas pole, handle, and hydraulic hose are tested to 100 kV per foot
  • Hydraulic oil has a dielectric strength of 25 + kV per ASTM D877-64
  • Hose minimum burst strength is 12,000 PSI
  • Pump provides maximum pressure of 9,000 PSI
  • Cuts without flattening conductor
  • Jaws are adjustable to compensate for wear
  • Hydraulic hose is located outside the pole for easy maintenance
Contact Us

More Options

Get a Quote

Product Details

General

EU RoHS Indicator No
Storage Bag Included? T306-0007 (Bag not included. Must be ordered separately.)
Style Scissors Jaw
UPC 096359018469

Dimensions

Length 72 in
Weight 18.13 lb
