CHANCE® 15kV 12ft. #2 Rubber Glove Jumper Set, 25kV Clamps

By CHANCE Utility

Catalog ID: C6010171

By CHANCE Utility
Catalog ID:  C6010171

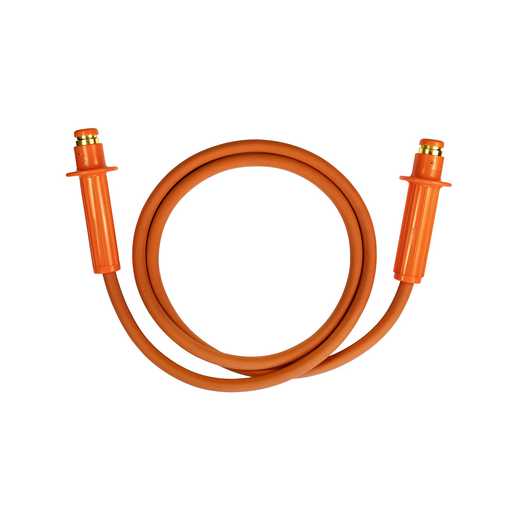

CHANCE® 15kV 12ft. #2 Rubber Glove Jumper Set, 25kV Orange Clamps
  • Designed and tested to ASTM F2321
  • Complete set rated to 15kV
  • Includes G4765 longer 25kV Rubber Glove Jumper Clamps and 12ft of S10043 #2 15kV Jumper Cable
  • Continuous current rating of 200 amps
  • Conductor range of #6 CU to 795 ACSR
  • Used for bypassing work areas when equipment is under repair, upgrading lines, and making temporary or emergency repairs
  • Clamps have 7-1/2" below the handguard
  • Adequate rubber gloves must be worn when isntalling or removing jumper clamps

Jumper clamps feature “floatingwasher” design and high-impact polyethylene handles with wide handguard flange. Large 15 kV and 25kV clamps each has 7-1/2" handle below handguard. NOTE: Adequate rubber gloves must be worn when installing or removing jumper clamps

Contact Us

More Options

Get a Quote

Product Details

General

EU RoHS Indicator No
Style Rubber Glove Applied
UPC 096359024590

Dimensions

Length 12 ft
Length - Jumper 144 in
Weight 13.72 lb

Electrical Ratings

Amperage Rating 200
Current Rating 200 A
Voltage - Maximum 15 kV
Voltage Rating 15 kV

Conductor Related

Conductor Diameter (Main) - Maximum 0.88 in
Conductor Diameter (Main) - Minimum 0.162 in
Conductor Size #2 AWG

Logistics

Pallet Quantity 16
