L1L10IE0530D - L1L Series 10,000 Lumen Output 5000K CCT, 180 minute 500 lumen battery backup, 120-277 Universal Voltage With Diffuse Glass Optic

By Killark

Catalog ID: L1L10IE0530D

By Killark
Catalog ID:  L1L10IE0530D
L1L Series 10,000 Lumen Output 5000K CCT, 180 minute 500 lumen battery backup, 120-277 Universal Voltage With Diffuse Glass Optic

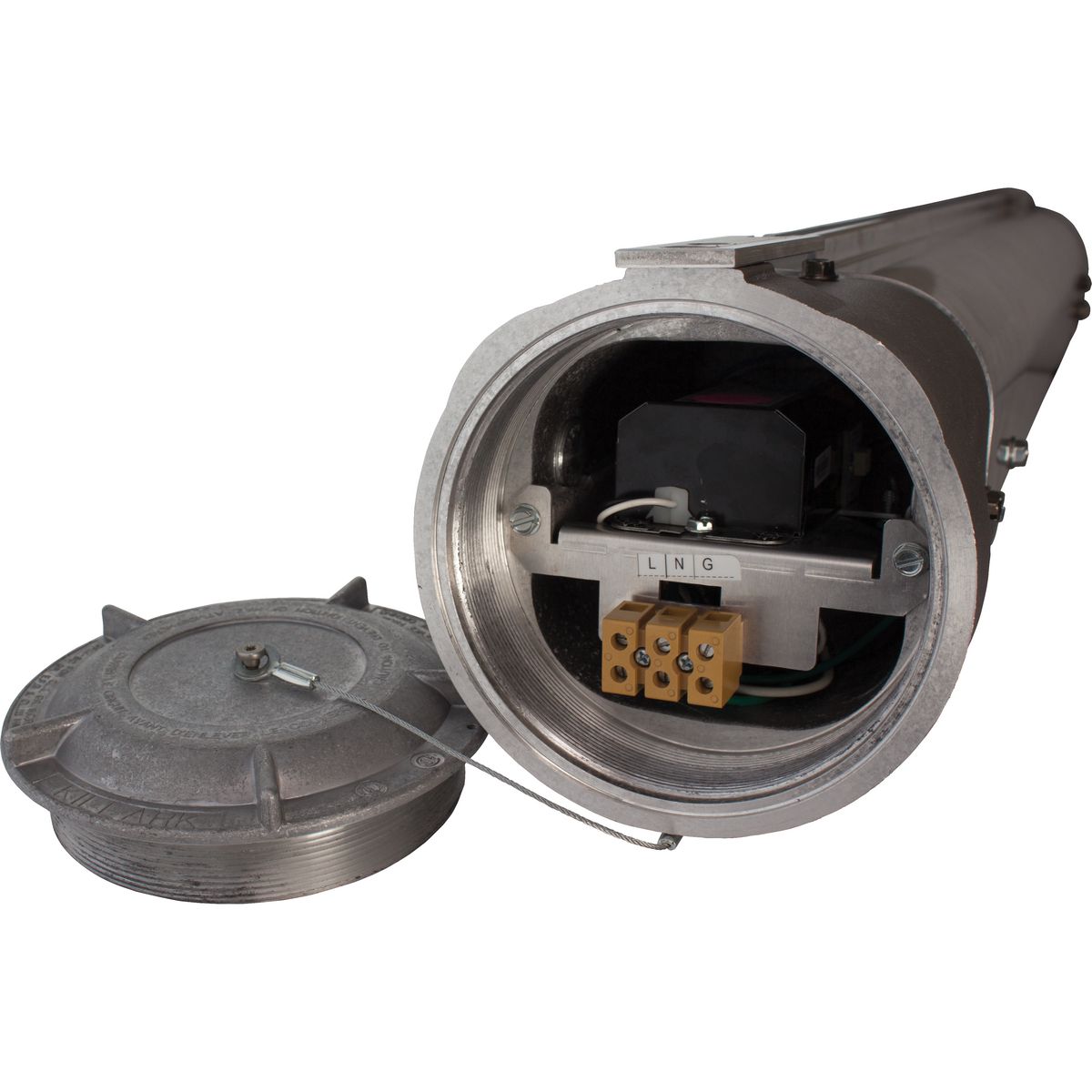

  • Tool-less access to wiring chamber
  • Slot-back design allows for a 5/16 or M8 bolt to be mounted anywhere along the back of the luminaire
  • High Efficacy up to 153 lumens per watt delivered
  • Standard supplemental surge 20kV / 10kA
  • Corrosion resistant Copper-free housing
  • 90 & 180-minute battery backup options
  • Self-Testing per NFPA 101® Life Safety Code
  • Self-diagnostics monitors emergency LED status, emergency LED driver circuit, battery capacity, and charger function
  • Bright Colored LED provides visual fault detection and charging status

The L1L Series Linear LED are high quality explosion-proof light fixtures. Designed to go into the harshest environments where explosive vapors are present. Killark linear LED provide a crisp white light that is great for color rendering with Intellegent Self-Testing and Self-Diagnosing battery backup.

Contact Us
Add to List

More Options

Where to Buy
Get a Quote

Product Details

General

Color Temperature 5000 K
Finish Type Natural
Light Source LED
Lumen Range 5,001-10,000 lm
Lumens 7926
Material Aluminum, Copper Free (less than 4/10 of 1%)
Mounting Type Pendant or Surface
Optic Type Diffused Glass Lens
Series L1L
Type Linear Light Fixture

Dimensions

Hub Size 3/4"

Electrical Ratings

Lumens Per Watt 115.7
Voltage Rating 120-277 VAC
Wattage 68.5 W

Certifications and Compliance

Hazardous Rating(s)
  • Class I, Divisions 1 & 2, Groups B, C, D
  • Class II, Divisions 1 & 2, Groups E, F, G
  • Class III, Divisions 1 & 2
IP Rating IP66

Photometry (1)

Product Name Color Temp CRI Lumens Lm/W Watts Dist. Type Resources
L1L1030D IES File
