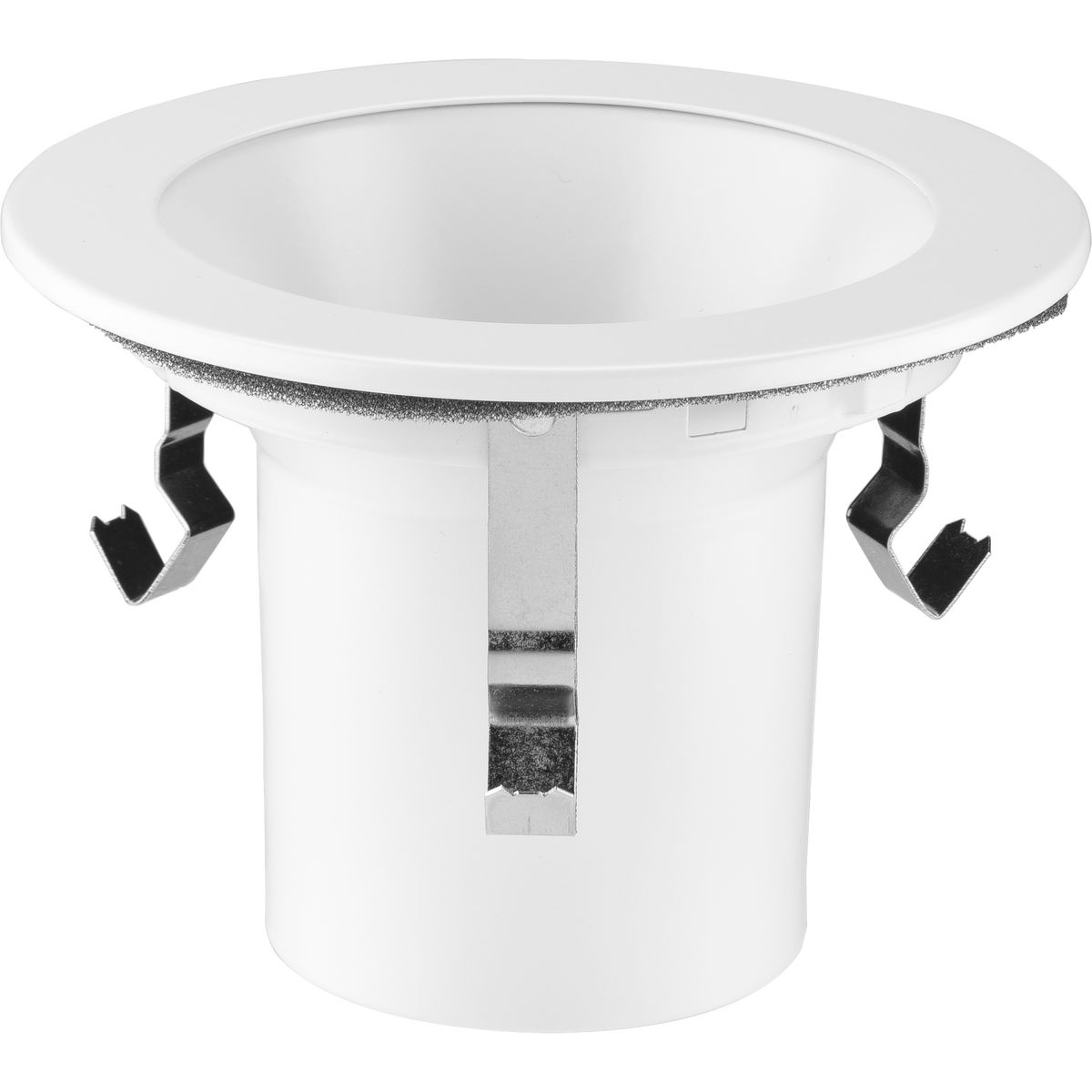

4" Satin White LED Recessed Open Shower Trim for 4" Housing (P804N series)

By Progress Lighting

Collection Name:  4" Recessed Trim

Catalog ID: P804002-028

By Progress Lighting
$46.20 USD
Collection Name:  4" Recessed Trim
Catalog ID:  P804002-028
The 4 in. Open Shower Trim finished in satin white features a painted steel flange and an aluminum reflector provided with a silicone gasket to allow the trim to meet the rigorous demands of wet location use. Integral flange design means light leaks are eliminated around the flange, and irregular ceiling openings are covered. Metal splay design universally blends with the surrounding décor. The open, lens-less, design allows for maximum light output. UL and CUL wet location rating requirements are met by use of an adhesive-backed, high-temperature silicone gasket placed on the interior top portion of the reflector to prevent the passage of water into the socket.
  • Durable painted steel and aluminum construction
  • Integral steel flange design means light leaks are eliminated around the flange, and irregular ceiling openings are covered
  • The open, lens-less design allows for maximum light output
  • A smooth satin white finish and metal splay design makes this trim ideal for various wet location downlighting solutions in new construction or remodel applications
  • Metal splay design universally blends with the surrounding décor
  • Measures 5 in. D x 3.45 in. H
  • Uses 1 PAR20 light source (sold separately) 50-watt maximum
  • An adhesive-backed, high-temperature silicone gasket is placed on the interior top portion of the reflector to prevent the passage of water into the socket
  • cULus wet location rating makes this trim ideal for use in bathrooms and other rooms where water is present
  • Warranty: Our 1-Year Limited Warranty guarantees your complete satisfaction with your purchase and includes professional after-sales customer service support
Add to List

Buy from a Partner

More Options

Where to Buy

Product Details

General

Aperture 3.6 in
Can be mounted up or down No
Color White
Color Generic White
Construction Material - Main Aluminum
Construction Material -Secondary Steel
Construction Material -Secondary part trim
Convertible fixture includes both mounts No
Dusk to Dawn No
Finish Name Satin White
Finish Type Powder Coat
Fire Resistance No
Lamp Included No
Lamp Shape PAR20
Lamp Type PAR20
Lamp Type Basic Incandescent
Lifestyle
  • Utilitarian
  • Traditional
  • Modern
  • Transitional
Light Distribution Down
Mount location ceiling in recessed housing
Mounting Type Recessed
New Products Yes
Number of Lamps 1
Number of Lamps Total 1
Photocell No
Post top fits standard No
Power Source Hardwired
Power Source Required? Yes
Quick Install canopy No
Quick Link connector No
Room Type
  • Bathroom
  • Bedroom
  • Bonus Room
  • Closets
  • Garage
  • Great Room
  • Kitchen
  • Living Room
  • Laundry
  • Utility
Socket Base Type - Main E26
UPC 785247229000
Warranty Length 1-year Limited Warranty

Dimensions

Dimensions 5 in x 5 in x 3.45 in
Height 3.45 in
Length 5 in
Note Weight of fixture exceeds NEC limits No
Weight 0.32 lb
Width 5 in
Width Diameter Descriptor dia.

Electrical Ratings

Lamp Wattage 50 W
Voltage Rating 120 VAC

Certifications and Compliance

Certified Listed cULus
Certified Listed Location Wet Location Listed
DarkSky No
ENERGY STAR Certified No
Energy Efficient Yes
JA8 No
Other Heavy Metal Content Indicator No
Title 22 No
Title 24 No

Logistics

Carton Quantity 24

Resource Links

Instruction Sheet Number 93158467
