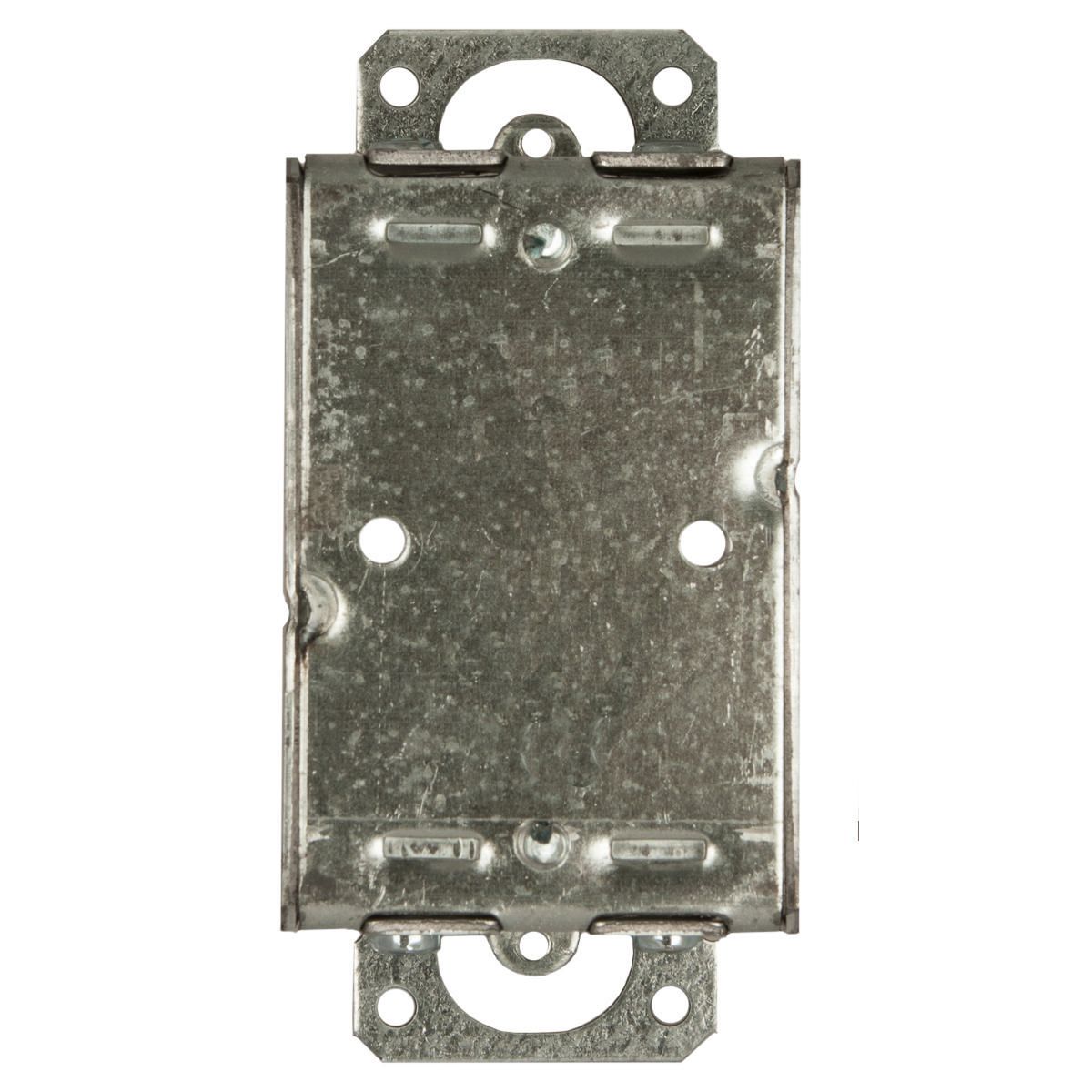

3 in. x 2 in. Switch Box, 1-1/2 in. Deep, NMSC Clamps, Plaster Ears

By Raco

Catalog ID: 410

By Raco
Catalog ID:  410
3 in. x 2 in. Switch Box, 1-1/2 in. Deep, NMSC Clamps, Plaster Ears
  • 3 in. x 2 in., 1-1/2 in. deep
  • Non-gangable
  • L clamps provided for non-metallic sheathed cable (NMSC)
  • Plaster ears allow a box to be used in "old work" applications
  • 7.5 cu. in. capacity
  • Acceptable for use in 2-hour fire rated walls

Product Details

General

Bracket Type No Bracket
Color Gray
Ends Cable 4
Fire Resistance Yes
Gangable Yes
Material Steel
Number of Gang(s) 1-Gang
Plaster Ears Yes
Type
  • Switch Box
  • Box
UPC 050169004104
Wiring System Nonmetallic Sheathed Cable

Dimensions

Actual Depth 1.874 in
Cubic Capacity 7.5 cu.in
Depth 1.5 in
Height 4.233 in
Weight 0.432 lb
Width 1.975 in

Electrical Ratings

Power Distribution Features Fire Rated

Certifications and Compliance

Certified Listed UL Listed

Logistics

Carton Quantity 25
Packaging Type No Packaging
Pallet Quantity 3375
