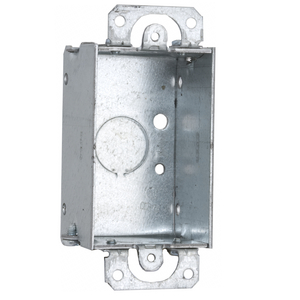

3 in. x 2 in. Switch Box, Gangable, 1-1/2 in. Deep, Three 1/2 in. KO's & Plaster Ears

By Raco

Catalog ID: 400

By Raco
Catalog ID:  400
3 in. x 2 in. Switch Box, Gangable, 1-1/2 in. Deep, Three 1/2 in. KO's & Plaster Ears
  • 3 in. x 2 in., 1-1/2 in. deep
  • Gangable switch boxes offer the option of constructing a box to hold two or more devices
  • With proper fitting can be used for conduit, NMSC, armored, metal clad, flex cable
  • Supplied with three 1/2 in. knockouts
  • Plaster ears allow a box to be used in "old work" applications
  • 7.5 cu. in. capacity
  • Acceptable for use in 2-hour fire rated walls

Product Details

General

Bracket Type No Bracket
Color Gray
Fire Resistance Yes
Gangable Yes
Knockouts 1/2 in
Material Steel
Number of Gang(s) 1-Gang
Plaster Ears Yes
Type
  • Switch Box
  • Box
UPC 050169004005
Wiring System Conduit

Dimensions

Cubic Capacity 7.5 cu.in
Depth 1.5 in
Height 4.219 in
Weight 0.383 lb
Width 2 in

Electrical Ratings

Power Distribution Features Fire Rated

Certifications and Compliance

Certified Listed UL Listed

Logistics

Carton Quantity 20
Packaging Type No Packaging
Pallet Quantity 3920
