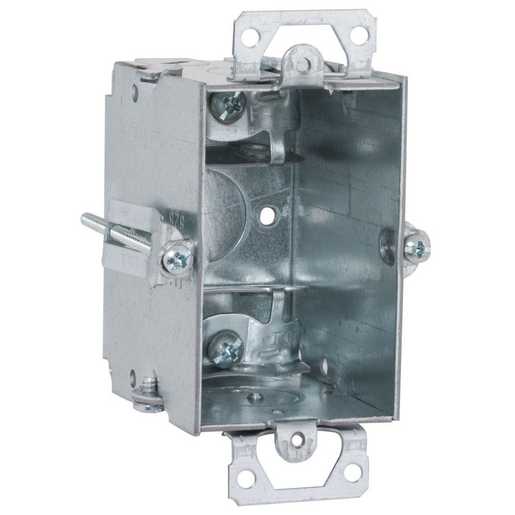

3 in. x 2 in. Switch Box, Gangable, 2-1/2 in. Deep with One 1/2 in. KO & AC/MC/Flex Clamps, Griptite, Old Work

By Raco

Catalog ID: 523

By Raco
Catalog ID:  523
3 in. x 2 in. Switch Box, Gangable, 2-1/2 in. Deep with One 1/2 in. KO & AC/MC/Flex Clamps, Griptite, Old Work
  • 3 in. x 2 in., 2-1/2 in. deep
  • BX clamps provided for steel & alum armored cable, MCI cable, MCI-A cable, and flexible conduit
  • Gangable switch boxes offer the option of constructing a box to hold two or more devices
  • Supplied with one 1/2 in. knockout
  • Includes plaster ears and Griptite clips for "cut-in" or "old work" applications
  • 12.5 cu. in. capacity
  • Acceptable for use in 2-hour fire rated walls

Product Details

General

Bracket Type No Bracket
Color Gray
Ends Cable 4
Fire Resistance Yes
Gangable Yes
Knockouts 1/2 in
Material Steel
Number of Gang(s) 1-Gang
Plaster Ears Yes
Type
  • Switch Box
  • Box
UPC 050169005231
Wiring System Armored Cable/Metal Clad/MCI-A/Flex

Dimensions

Cubic Capacity 12.5 cu.in
Depth 2.5 in
Height 4.219 in
Weight 0.649 lb
Width 2.625 in

Electrical Ratings

Power Distribution Features Fire Rated

Certifications and Compliance

Certified Listed UL Listed

Logistics

Carton Quantity 25
Packaging Type No Packaging
Pallet Quantity 2500
