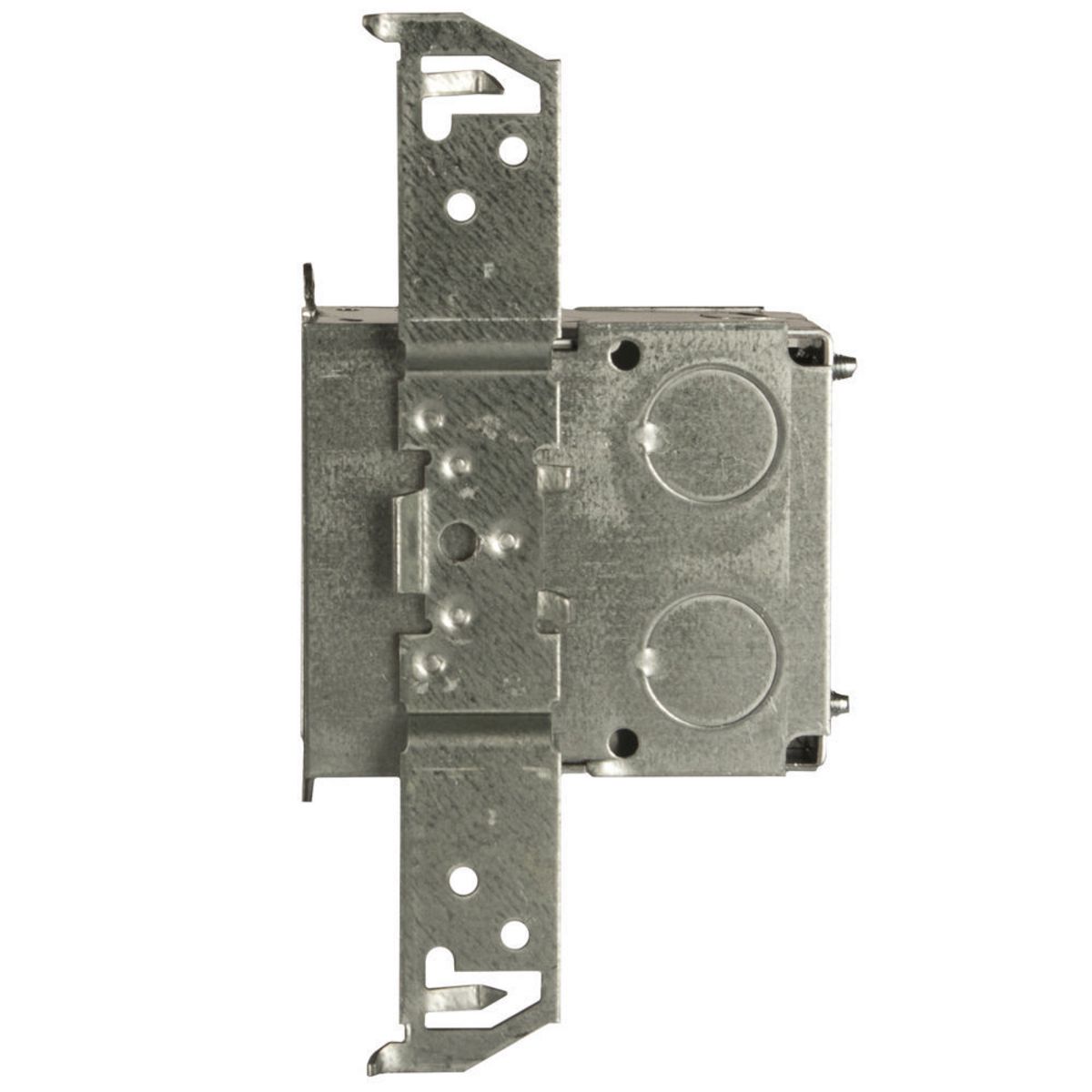

3 in x 2 in. Switch Box, Gangable, 3-1/2 in. Deep, Seven 1/2 in. KO's & NMSC Clamps, TS Bracket

By Raco

Catalog ID: 605

By Raco
Catalog ID:  605
3 in x 2 in. Switch Box, Gangable, 3-1/2 in. Deep, Seven 1/2 in. KO's & NMSC Clamps, TS Bracket
  • 3 in. x 2 in., 3-1/2 in. deep
  • Gangable switch boxes offer the option of constructing a box to hold two or more devices
  • Includes "TS" side-mount bracket with gauging tabs and recessed nailing spurs
  • L clamps provided for non-metallic sheathed cable (NMSC)
  • Supplied with seven 1/2 in. knockouts
  • 18 cu. in. capacity
  • Acceptable for use in 2-hour fire rated walls

Product Details

General

Bracket Setback 0.50
Bracket Type TS, for Metal or Wood Studs
Color Gray
Ends Cable 4
Fire Resistance Yes
Gangable Yes
Knockouts 1/2 in
Material Steel
Number of Gang(s) 1-Gang
Plaster Ears No
Type
  • Switch Box
  • Box
UPC 050169006054
Wiring System Nonmetallic Sheathed Cable

Dimensions

Actual Depth 3.63 in
Cubic Capacity 18.0 cu.in
Depth 3.5 in
Height 7 in
Weight 0.834 lb
Width 2.563 in

Electrical Ratings

Power Distribution Features Fire Rated

Certifications and Compliance

Certified Listed UL Listed

Logistics

Carton Quantity 25
Packaging Type No Packaging
Pallet Quantity 1650
