NEMA 1 Dugout Transition Box with STAB-IT® Cable Clamps, 8X20X6

By Raco

Catalog ID: SC082006STRC

By Raco
Catalog ID:  SC082006STRC
NEMA 1 Dugout Transition Box with STAB-IT® Cable Clamps, 8X20X6
  • Designed for quick installation of flex, MC, MCI, MCI-A, AC and HCF cable

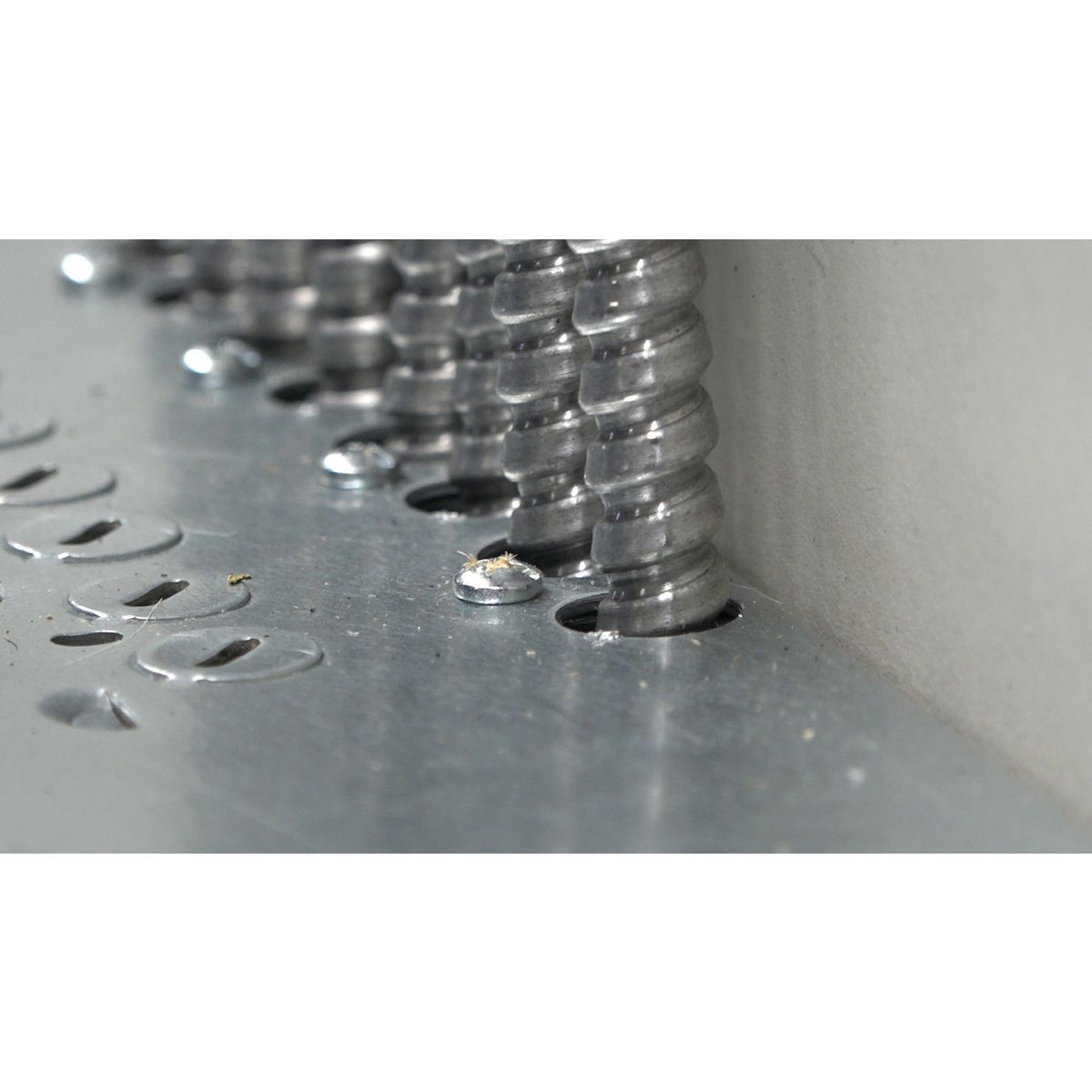

  • STAB-iT® clamp has been tested at over 3X's faster than traditional MC connectors
  • Room to add up to six additional STAB-iT® connectors
  • Accepts cable sizes from 14/2 up to 10/3 for most cable types
  • Features (4) 3/4 - 1 in. Concentric Knockouts
  • Covered included
  • UL Listed
  • Designed and assembled in the USA

Product Details

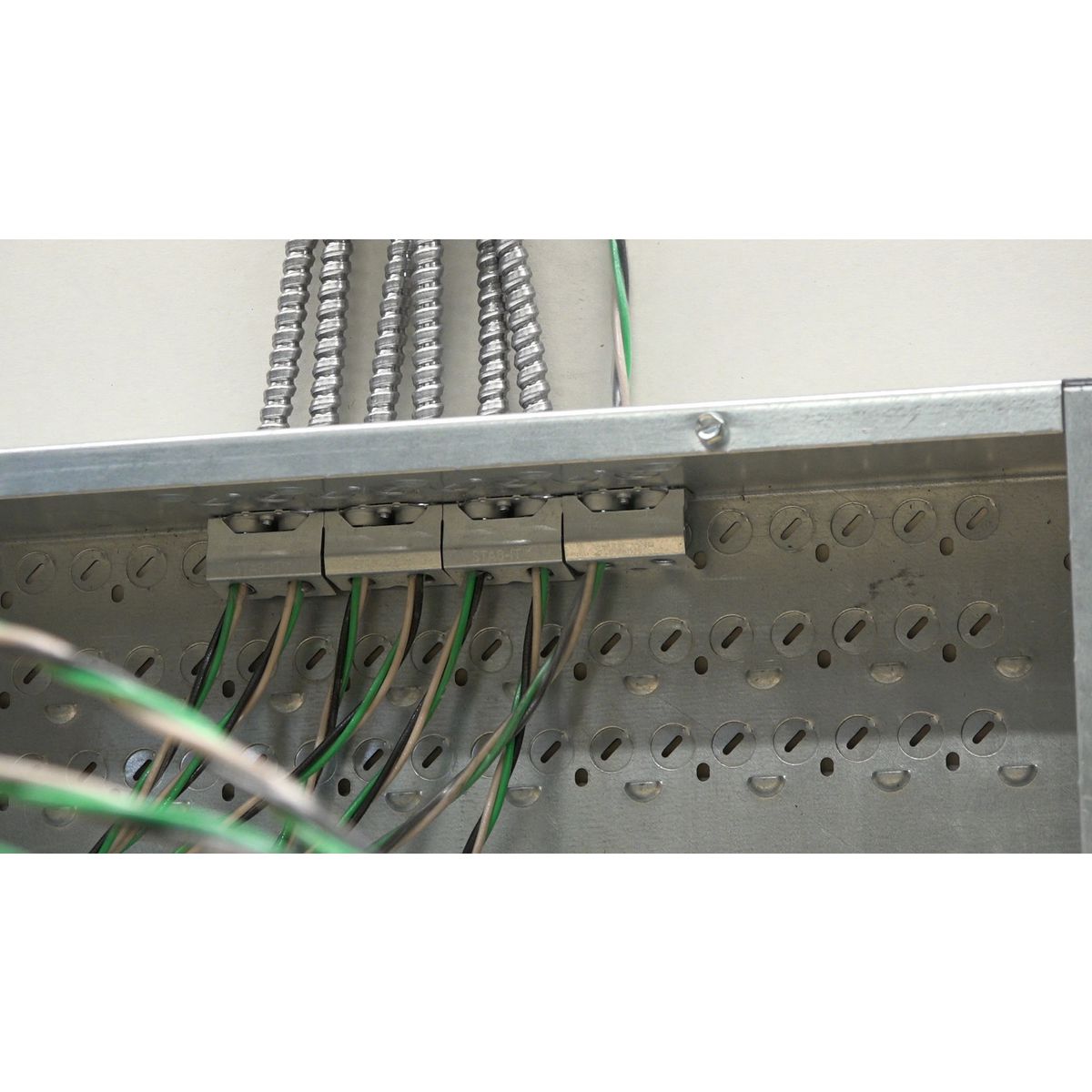

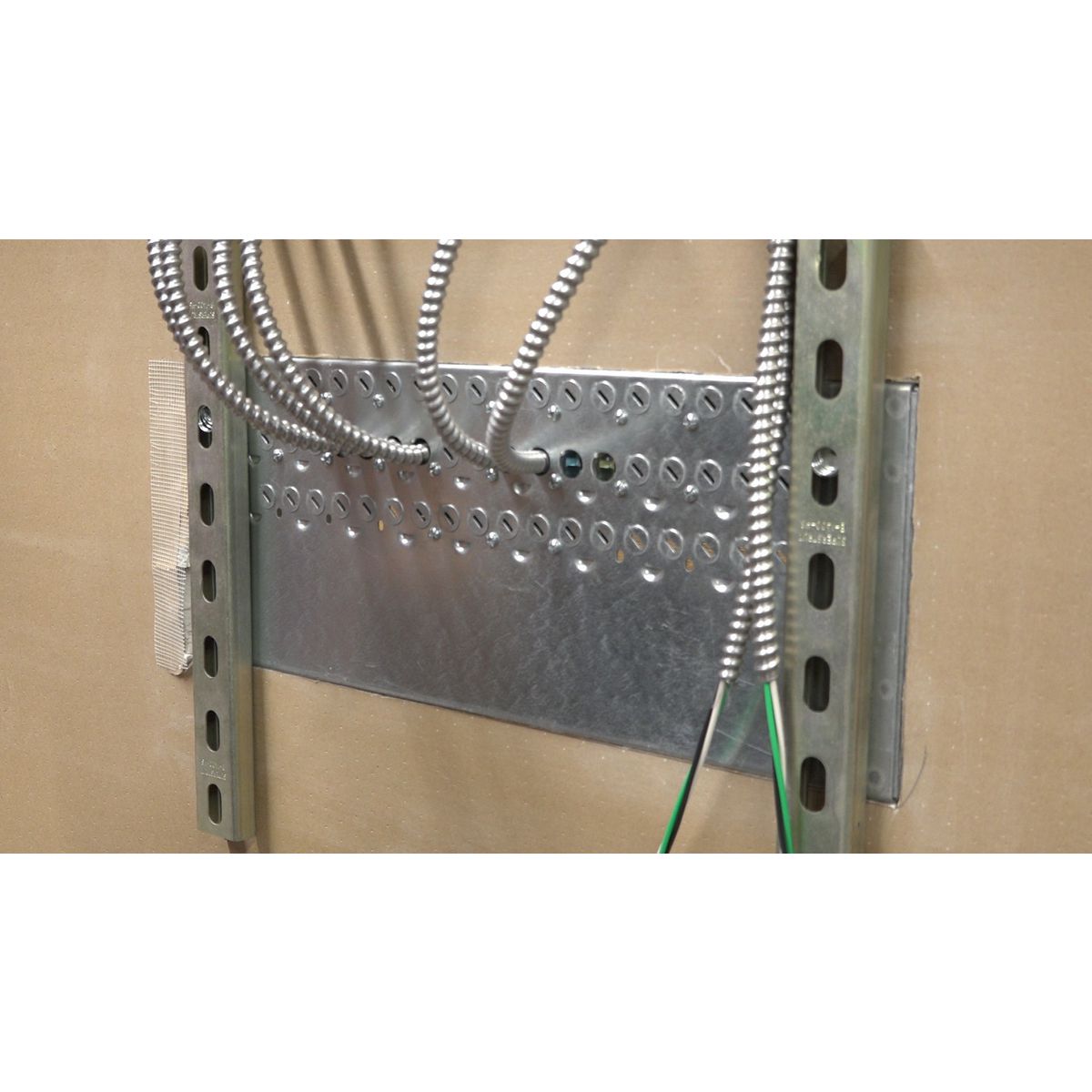

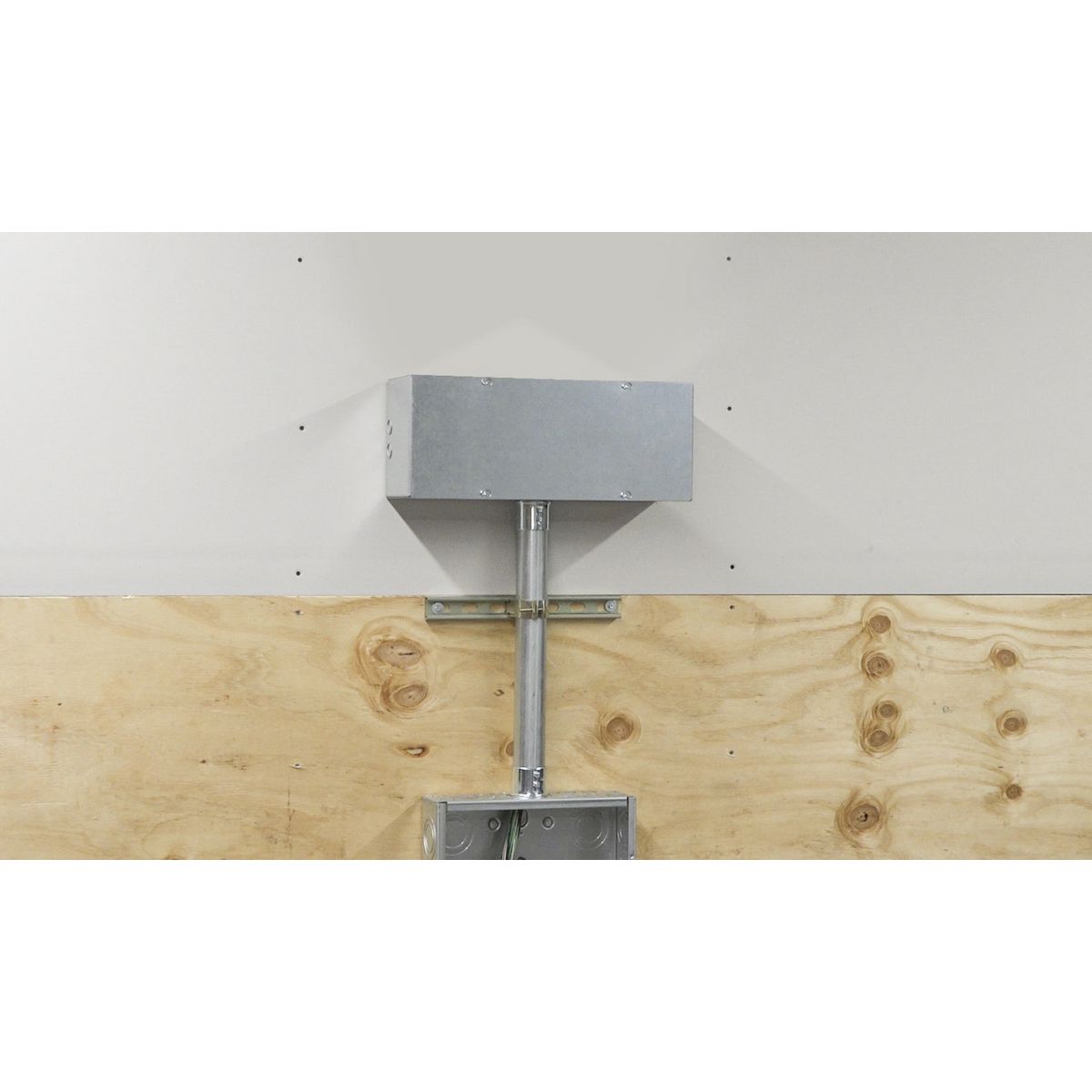

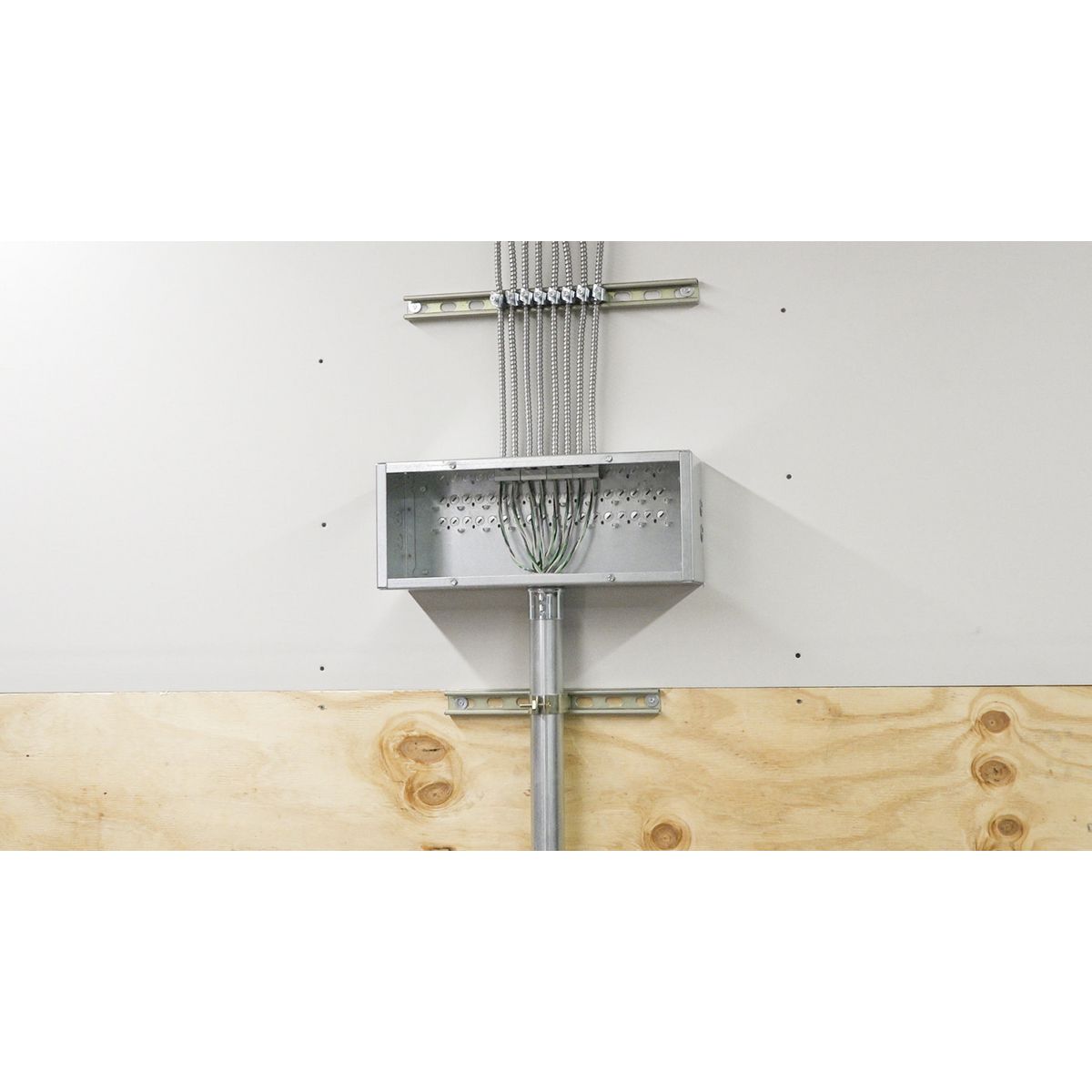

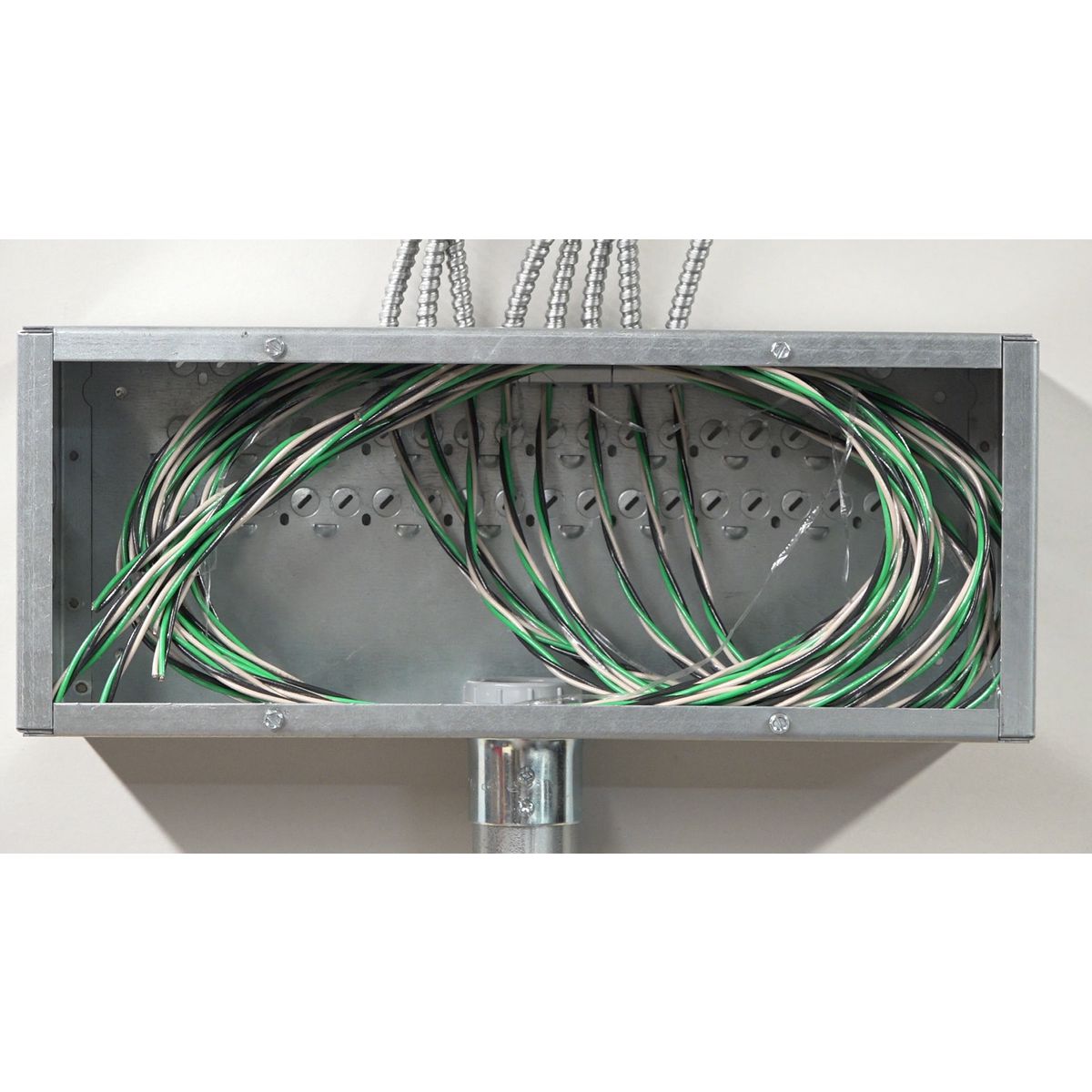

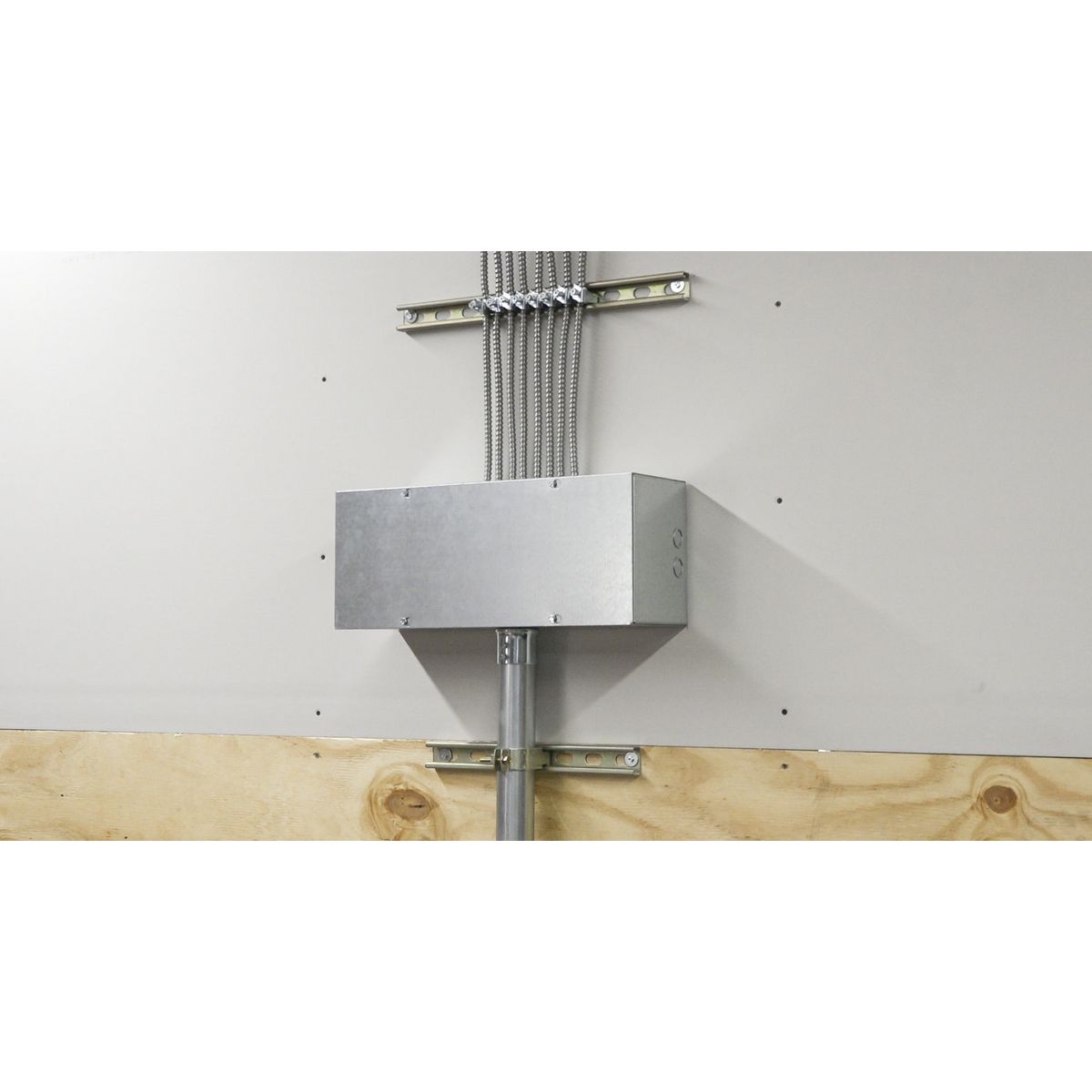

Application RACO’s Dugout box offers the quickest and easiest way to transition from flexible armored cable to conduit before entering the circuit panel. Specifically designed for commercial applications, the Dugout box builds on the popular concept of our Grand Slam box. This roomy rectangular model features plenty of space for wiring along with 21 of our built-in STAB-iT cable clamps, which hold up to 42 MC cables! Our unique clamps are field-proven to install up to 3X faster than traditional MC connectors. Four concentric knockouts are provided for either 3/4" or 1" conduit out to the circuit panel. For wall or ceiling mounting. The Dugout box offers more labor savings and installation flexibility than any other transition box on the market.
Cover Type Blank

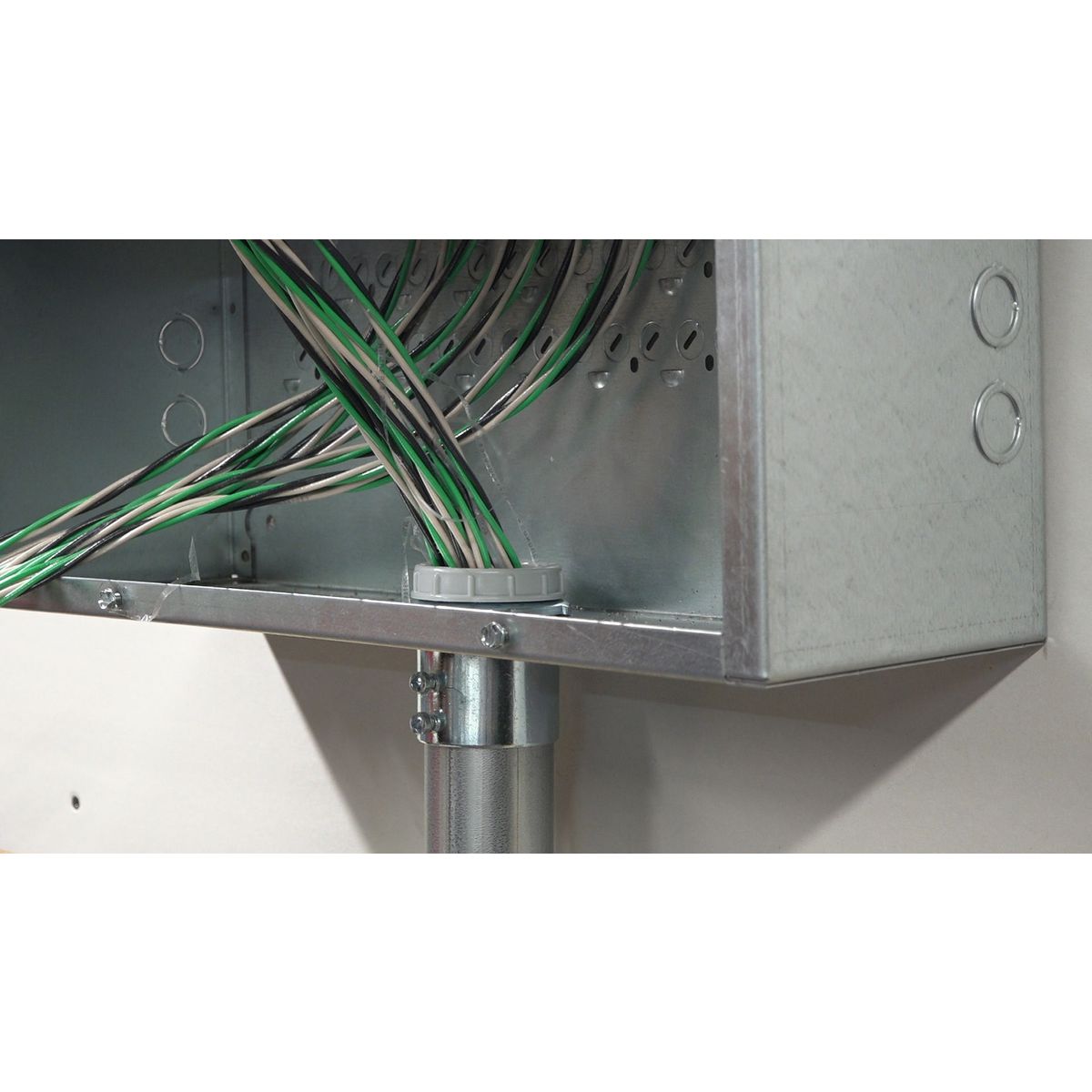

Knockouts 3/4 - 1 in. Concentric
UPC 050169995655


Depth 6 in
Height 8 in
Width 10 in

Conductor Related

Cable Entry Knock Outs

Certifications and Compliance

Certified Listed UL Listed
Nema Rating NEMA 1


Carton Quantity 1
Pallet Quantity 48

Resources and Downloads


Sell Sheets


RACO: Dugout Transition Box
