AW3.9.24

By Raco

Collection Name:  STAB-IT®

Catalog ID: AW3.9.24

By Raco
Collection Name:  STAB-IT®
Catalog ID:  AW3.9.24

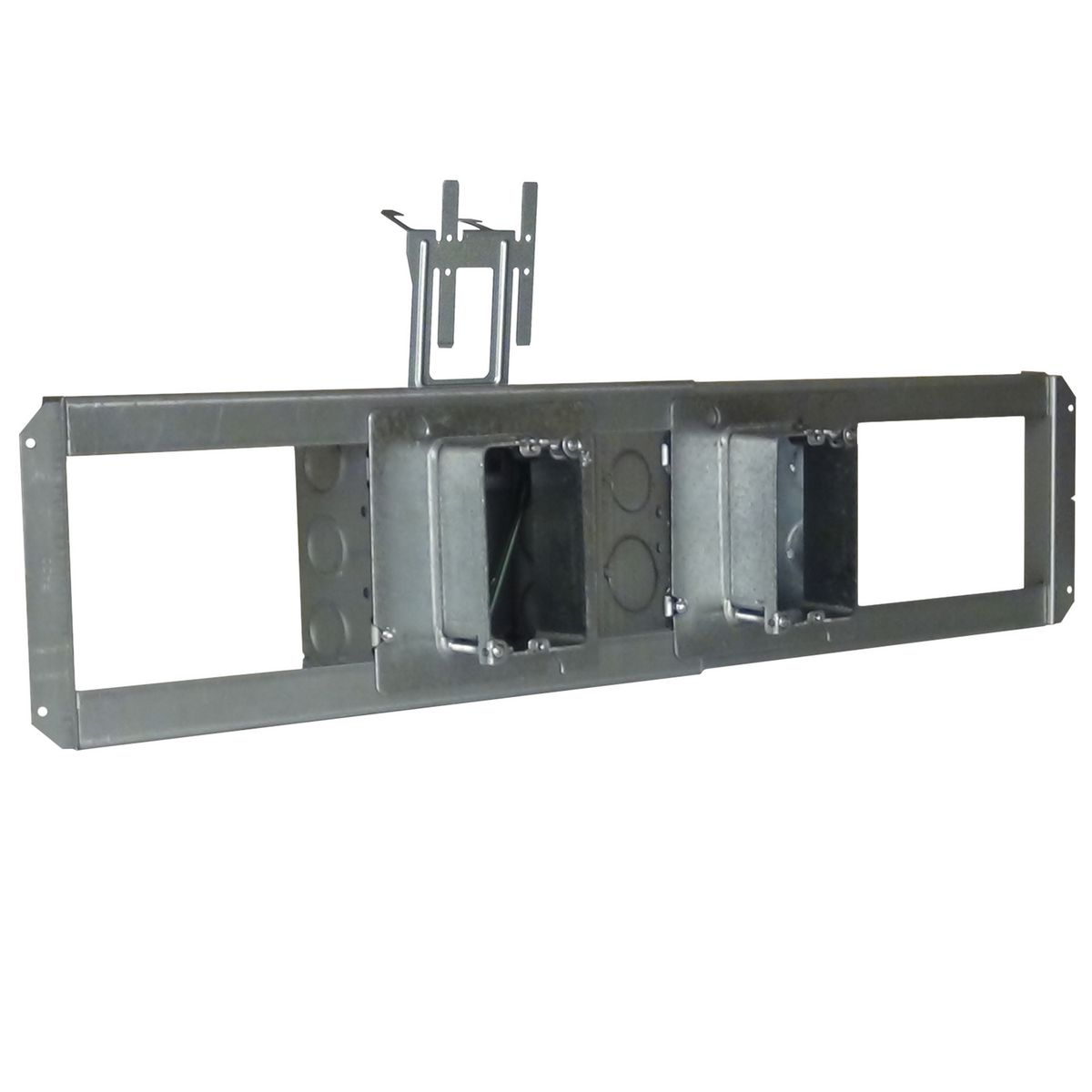

STAB-iT® Pre-Fab Assembly, 9020R model + 252SCM model + 265 model + (2) 868AMR model / 1G - Adj. Mud Ring / 24" Studs
  • Ready to install, no preparation required
  • For use on wood or metal studs
  • Designed and assembled in USA

Product Details

General

Application
  • Save labor costs on any job with RACO Pre-Fab assemblies. All components come pre-assembled, ready to install right out of the box. Electrical boxes, mounting brackets, cable management and mud rings. Ensure quality while reducing material and labor costs. Even reduce jobsite packaging waste.
  • These Assemblies feature 4-11/16" boxes with integrated STAB-iT® II connectors for advanced fast, secure installation of MC cables. Contractor-proven to install MC in just 1/3 the time! These boxes also include built-in cable management clip and 8" solid #12 pigtail. Models with a second box for power and data applications include a standard 4-11/16" box with additional knockouts.
Cable Clamps 1
Drawn or Welded Welded
Knockouts (1) 1/2", (10) 1/2 - 3/4" TKO, (1) 3/4 - 1" TKO
Material Steel
Number of Gang(s) 1-Gang
UPC 050169993361
Wiring System Flex

Dimensions

Cubic Capacity 42
Raised Ground Yes

Certifications and Compliance

Certified Listed UL Listed

Logistics

Carton Quantity 6
Pallet Quantity 108
